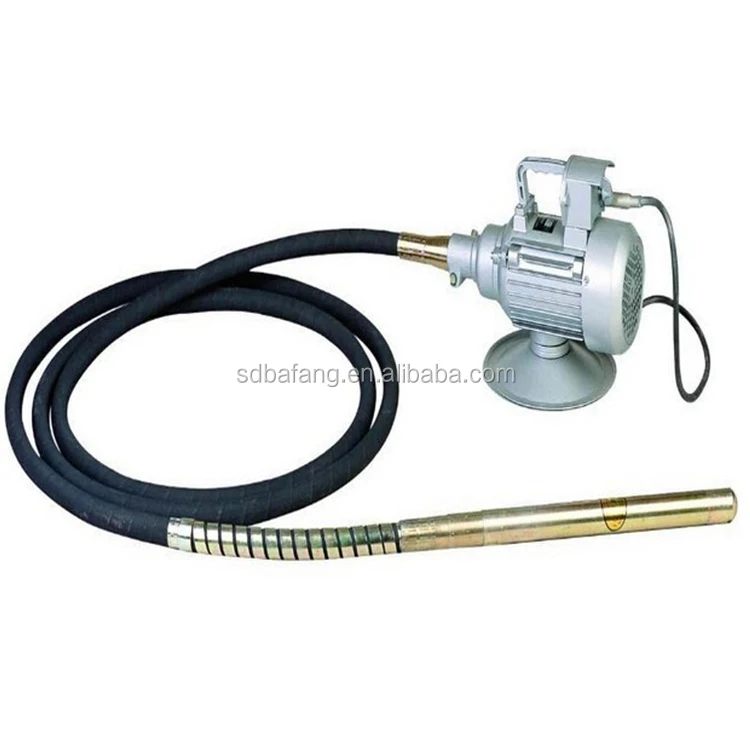

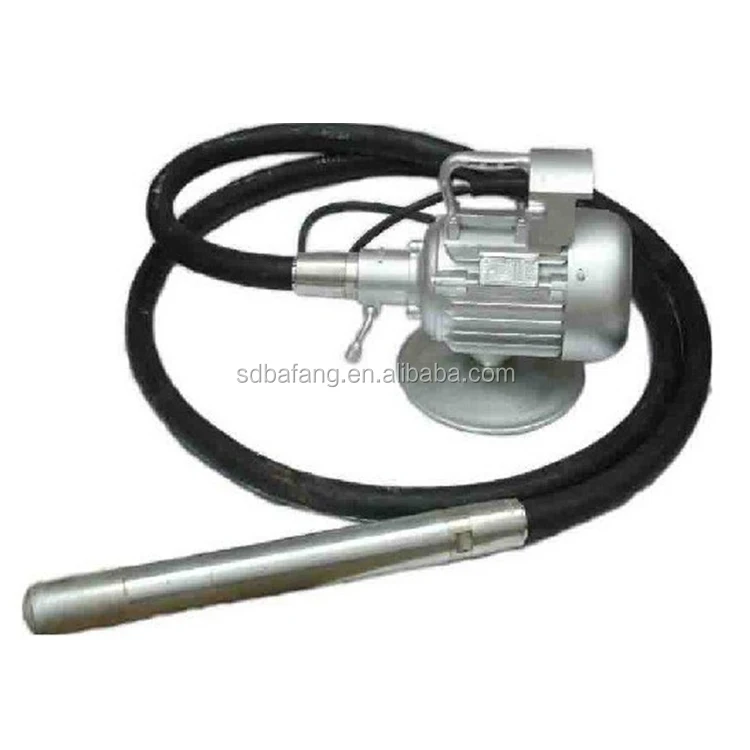

1.5kw Concrete Industrial Electric Vibrator Machine

FOB Reference Price:Get Latest Price
$90.00 - $150.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Frequency:
50/60HZ
Vibrating Amplitude:
2-5mm
Dimension(L*W*H):
480x580x580mm
Weight:
37kg
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Bafang
Model Number:
ZN50
Type:
External
Drive Mode:
Electric Vibrator
Length of Flexible Shaft:
1-12m
Voltage:
220V
Power(W):
1.5kw
Certification:
CE ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Box
Port
Qingdao China
Lead Time :
Shipped in 3 days after payment

1.5kw Concrete Industrial Electric Vibrator Machine

Product Description

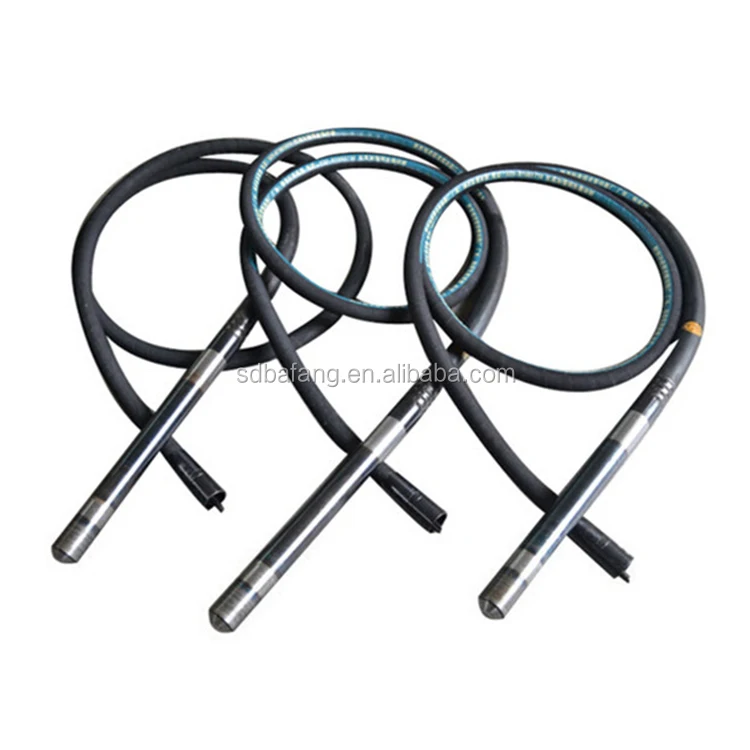

1.The ZN Series concrete vibrator is an immersion type vibrator. During operation, the vibrating poker that is attached to the vibrator has to be immersed into the concrete .The poker has an eccentric vibrating element inside it .



2. The vibrator incorporates off-centered weights into the 18000rpm electric motor to generate high frequency vibration . Via the flexible tube, the vibrator transmits the vibration to the poker via the flexible tube .It is spun as much as 12000 times per minute, which makes it easy to cause resonance with the poured concrete .

Technical Parameters:

Model

Frequency

Power

(KW)

Vibration

Frequency

(HZ)

Vibrator Head

Diameter (mm)

Hose Length

(m)

Weight

(kg)

Speed

(r/min)

 ZN 25

380V/50 HZ

1.5

230

25

4/6/8/10

35

2850

 ZN 35

380V/50 HZ

1.5

200

35

4/6/8/10

37

2850

 ZN 50

380V/50 HZ

1.5

183

50

4/6/8/10

47

2850

 ZN 70

380V/50 HZ

2

183

70

4/6/8/10

53

2850
