100 m depth XY-100 type water well drilling rig drilling rock machine

  • 1 - 2 Pieces
    $5,000.00
  • >=3 Pieces
    $2,000.00
Model Number:
XY-100
Power(W):
15KW
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
2 year
Place of Origin:
Shandong, China
Brand Name:
BAFANG
Usage:
Coal
Voltage:
380V
Weight:
1000kg
Certification:
ISO9001
Type:
Rotary Drilling Rig
Power Type:
Electric
Dimension(L*W*H):
2.75*0.95*1.6m
Applicable Industries:
Farms, Home Use, Construction works , Energy & Mining
After-sales Service Provided:
Overseas third-party support available, Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, No after-sales service
product name:
bafang series water well drilling rig
Name:
core drilling rig
Supply Ability
Supply Ability:
500 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
wooden box
Port
qingdao
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 To be negotiated

100 M Water well drilling machine

  Water Well Core Drilling Machine



Introduction



  • Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.
  • With hydro-automatic feeding device, and high drilling efficiency.
  • Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.
  • Close levers, convenient to operate, safe and reliable operations.
  • Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.
  • Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas

  Technology Parameters



Unity machine parameter

Drilling depth

100m

Drilling caliber

200mm

Drill rod caliber

50mm

Drilling angle

90°~75 °

Drill weight (No include power)

510kg

Spindle

Spindle speed

64 128 287 557 r/min

Spindle stroke

450mm

Hoist

Max.single line hoisting capacity

2400kg

Reel lifting speed

0.41 0.82 1.64m/s

Tightrope caliber

12.5mm

Tightrope cubic measure

35mm

Hug floodgate caliber

260mm

Hug floodgate belt width

70mm

Distance between drill and hole

450mm

Mud pump

Type

Horizontal single urn twin action

Displacement

170L/mim

Power

Diesel engine

S1115 15HP

Electric motor

Y160M-4 11kw 1440r/min

Maximum pressure

3Mpa

Work pressure

1.5Mpa

Water inlet caliber

40mm

Water to exit caliber

30mm

Triangle conveyer belt

B1728mm

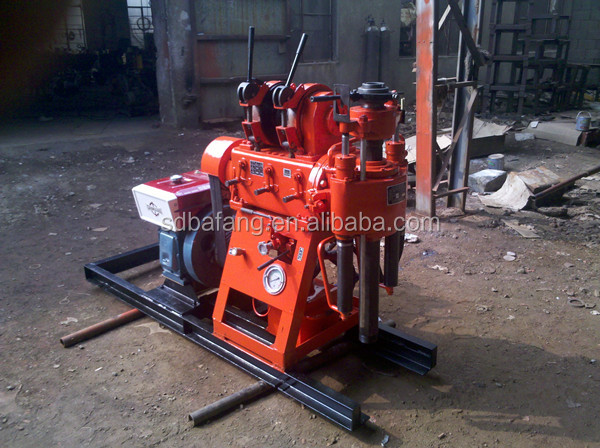

Detailed photo

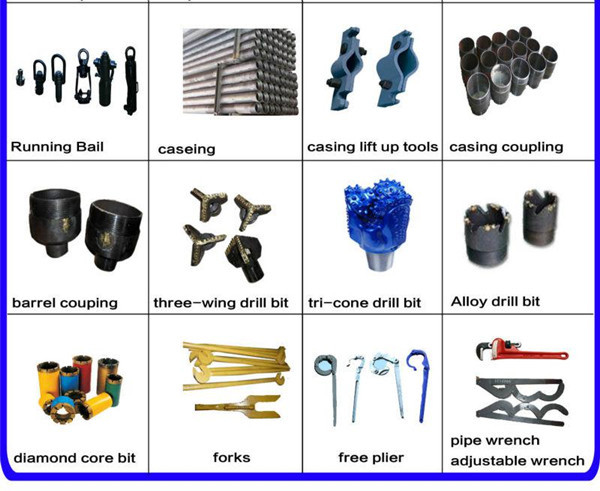

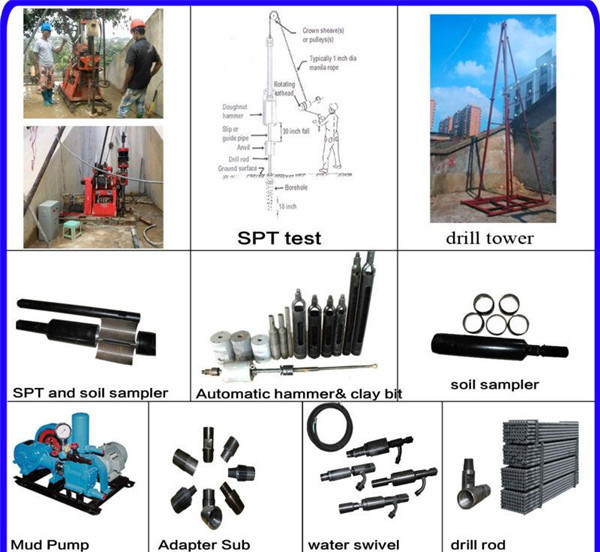

equipped accessories

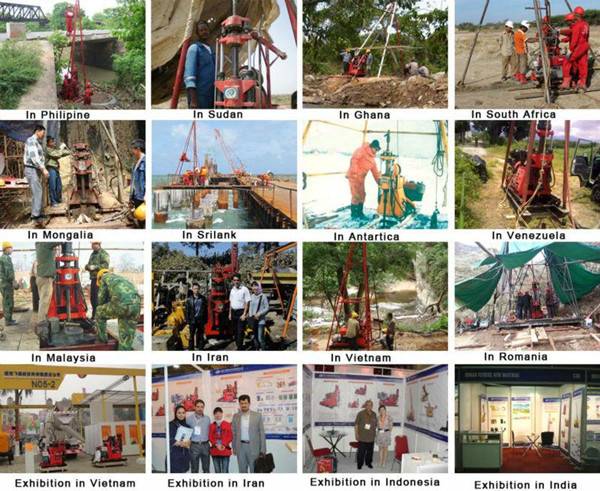

customer

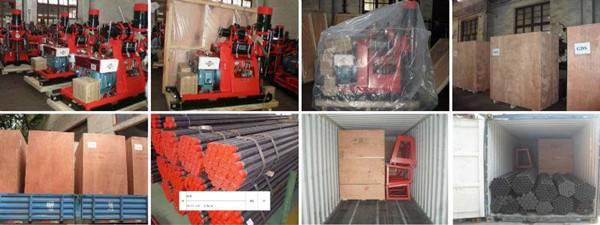

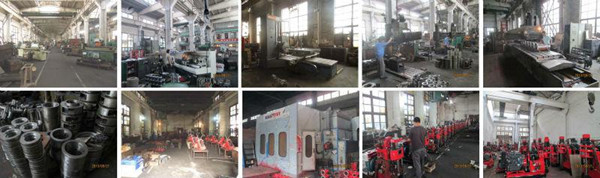

work shop and packing
