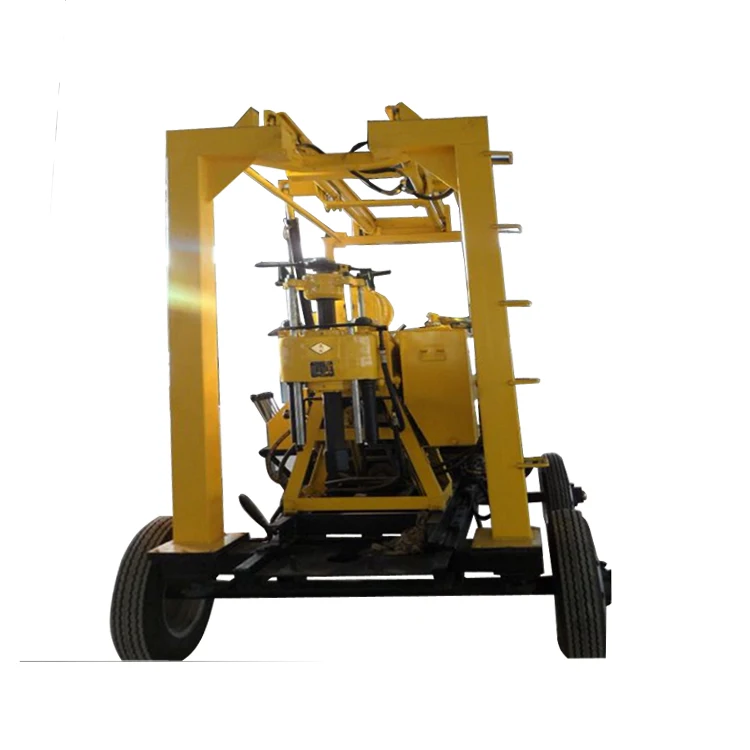

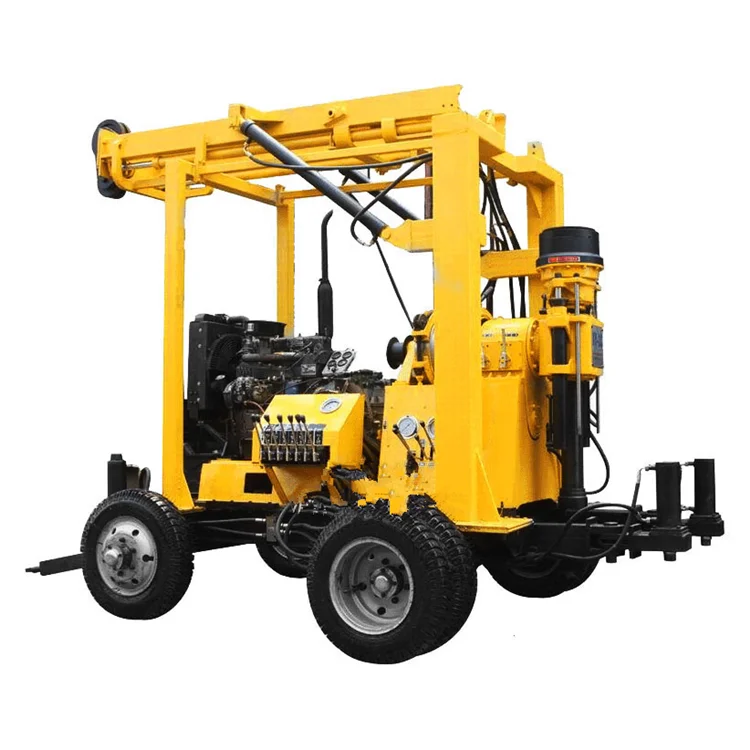

XY-3 BAFANG Series Diesel Hydraulic Drilling Rig

  • 1 - 99 Pieces
    $15,000.00
  • >=100 Pieces
    $5,000.00
Model Number:
XYX-3
Power(W):
60kw
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
Place of Origin:
Shandong, China
Brand Name:
BAFANG
Usage:
Water Well
Certification:
ISO CE
Type:
Core Drilling Rig
Power Type:
Diesel
Applicable Industries:
Farms, Construction works , Energy & Mining
product name:
XY-3 hydraulic drilling rig machine
drilling depth:
600m
drilling diameter:
300mm
Power:
60KW
Inlet diameter:
76mm
Outlet diameter:
51mm
Wheeled chassis carrying capacity:
3.6T
Work pressure:
7Mpa
flow:
350L/min
Wire rope diameter:
12.5mm
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
wooden box
Port
Qingdao
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 To be negotiated

 11 SPECIFICATION.png

a. XY-3 drilling rig adopts CG140 model auto transmission, has 10 rotation speeds and



easonable speed range, with eight forward roation gears and two reverse rotation gears, high



speed, strong stroke and wide scope of application.



b. Large engine power and two reverse rotation gears, can easily solve the drilling work



 accident.



c. The operation handles are fixed together in reasonable layout to make it more convenient



for workers to operate the machine.



d. Equipped with normally closed hydraulic chuck, operation is flexible and reliable



e. Spindle and hoist can be operated separately.



f.  Spindle has big inner diameter, able to use big hexagonal drilling rod.



14 PARAMETER.png



Drilling depth

100   250    300   600m

Drilling diameter

300    200    150    75mm

Opening diameter

300mm

Final hole diameter

75mm

Drill pipe

60mm

Drilling angle

90°--65°

Vertical axis forward speed

32-1057r/min

Vertical axis reversal speed

29-137r/min

Vertical axis travel

600mm

Vertical shaft bore diameter

96mm

Vertical shaft lifting capacity

60kN

Main winch parameter



Single rope lifting speed

0.5,0.9,1.4,1.9m/min

Wire rope diameter

12.5mm

Brake width

90mm

Roll diameter

300mm

Roll capacity

65m

Mud pump (optional) horizontal three-cylinder BW-250 mud pump:

flow

250L/min

Work pressure

7Mpa

Inlet diameter

76mm

Outlet diameter

51mm

Drilling machine dynamic parameters

diesel engine

YN27/power60kw/3200rpm

Motor

Y180L-4 22KW

Wheeled chassis carrying capacity

3.6T

Wheel chassis length

2.6m

Wheel chassis width

2m

Wheel chassis height

0.6M

15 picture.png
