Wet Mixer Concrete Shotcrete Wall Cement Mortar Spraying Plaster Machine

FOB Reference Price:Get Latest Price
$1,200.00 - $2,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Max. Conveying Distance:
Horizontal:30m;Vertical:20m
Max Aggregate Size:
15mm
Power(W):
5.5 KW
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Bafang
Model Number:
HSP Series
Voltage:
380V/660V
Certification:
ISO9001
Weight:
600kg
Dimension(L*W*H):
2000*800*1300mm
Hose Inner Diameter:
51 mm
Air Consumption:
7~8m3/min
Warranty:
12 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden or carton box
Port
Qingdao China
Lead Time :
Shipped in 3 days after payment

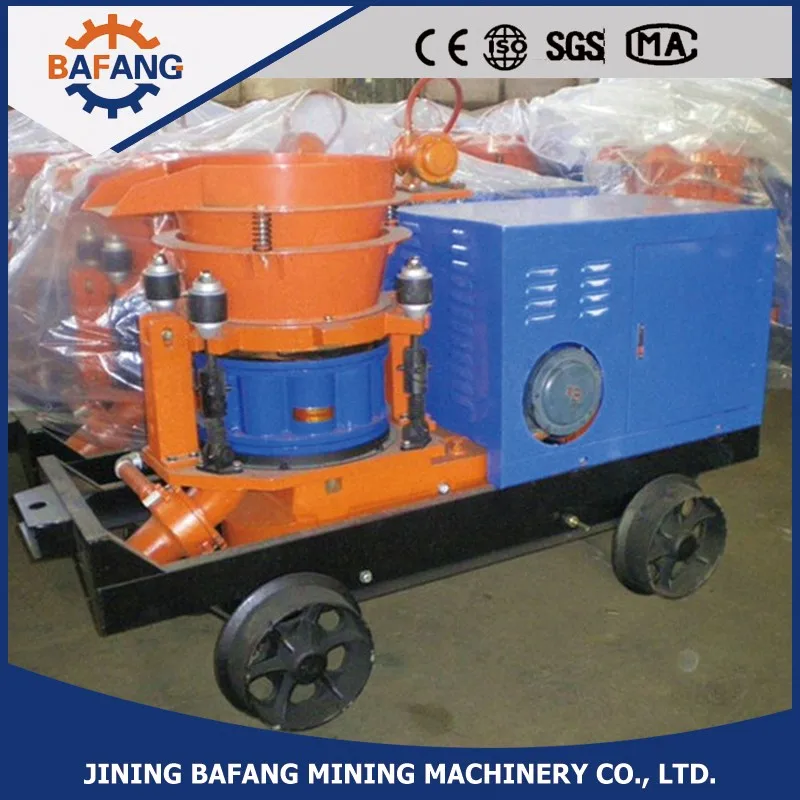

Wet Mixer Concrete Shotcrete Wall Cement Mortar Spraying Plaster Machine

.jpg

Widely be used for Construction Engineering, Mining, Tunnel, Culvert, Hydroelectric

Project, Underground Engineering Shotcrete Machine for Construction HSP-series wet shotcrete machine is an advanced and high efficient concrete spraying machine, has been designed especially for spraying of concrete . It has the advantages of low dust , low rebound , high-strength concrete , simple operation , convenient for maintaining , prolong operation life etc.

The machine , combined with dosing unite , is suitable for manual spraying or by means of a robotic arm .

It is used for the application of shotcrete in rail and road tunnel , subway engineering , hydro-power engineering, underground engineering , mine gallery and more concrete engineering.

Wet shotcrete is use the mixed concrete, and then add accelerator.

Common use:

1. Gunite Swimming Pool Construction.

2. Soil Retention and Tetaining Walls.

3. Rockscaping.

4. Refractory Spraying.

5. Mine Support.

6. Tunnel Linings.

7. Concrete Repair.

8. Artificial Rocks and Caves.

9. Low-volume Refractory Spraying.

Parameters:

HSP model (wet-type) shotcrete machine

Model (Wet-type spraying machine)

HSP-5

HSP-7

HSP-9

Capacity (m3/h)

4-5

5-7

6-9

Max. Conveying Distance

 (Horizontal,Vertical m)

30,20

30,20

30,20

Feeding pipe inner diameters(mm)

51

51/64

51/64

Max. Aggregate Diameters (mm)

15

15

15

Working pressure (MPa)

0.3-0.6

0.4-0.6

0.4-0.6

Air consumption (m3/min)

10-15

10-15

10-15

Rotor Diameter(mm)

438

480(160)

480(175)

Springback (Average)

≤10%

≤10%

≤10%

Liguid accelerator content

0.3-0.7%

0.3-0.7%

0.3-0.7%

Motor Model

Y132M-6-5.5KW

Y160M-6-7.5KW

Y160M-6-7.5KW

Motor Power

0.37KW

0.37KW

0.37KW

The accelerator metering pump

Air operated

Air operated

Air operated

Voltage (V)  (according to customer's

 special requirement)

380,660,etc

380,660,etc

380,660,etc

Overall size (mm)

1280*700*1280

2000*800*1300

2000*800*1300

Overall weight (kg)

700

800

900
