Mining quarrying machine mountain stone sawing machine

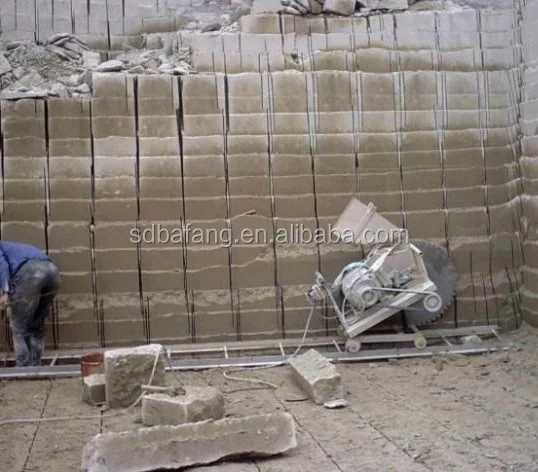

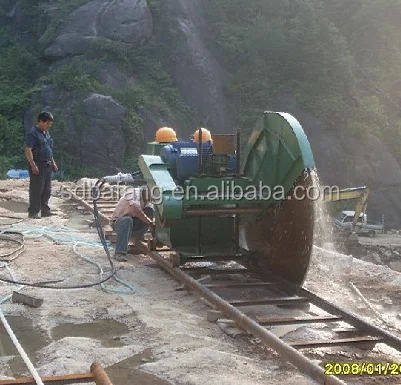

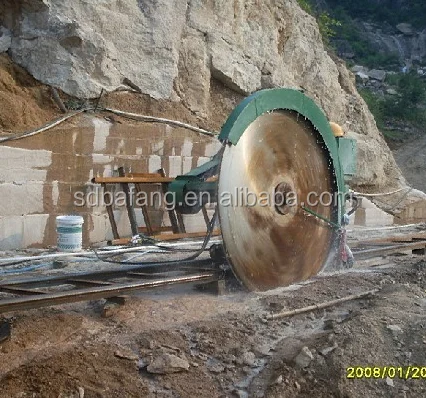

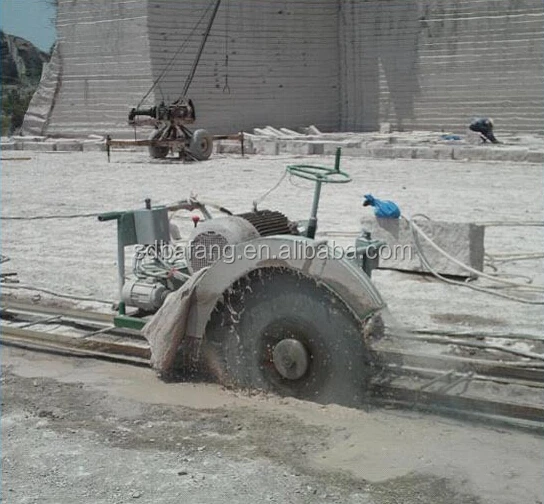

Mining quarrying machine also called stone sawing machine Stone cutting machine, without blasting, can be directly on the mine exploitation of all kinds of stone Saw blade diameter of 1200 mm, depth can be cut to 470 mm.
Walking machine automatic,Walking speed is adjustable
Full set including
main body machine
1200 mm blade *1 pcs
orbital 10 meters (alternate)
a main motor, a walking motor
Our factory produce mining quarrying machine, machine flexible, mobile convenience, low prices,many functions. It is suitable for small-scale mining stone material with high efficiency, large mining use small pieces of waste material, can be widely used in the tuff, granite, marble mine cutting production.
In our local tuff, for example, it is soft rock, 8 hours a day can cut tuff 200-300 meters (about 45 cm deep). High efficiency, high stone yield rate, energy saving.
cutting mountain depth: 470 mm
cutting length/width: unlimited
His main motor: power 18.5 kw / 6 stage
His traveling motor: power 0.55 KW
Derive water consumption: 3 m3 / h
(water lubrication requirements can saw blade, cooling, dust removal can be)
His host weight: 180 kg
Derive the total weight: 680 kg
blade diameter (mm)
cutting depth (mm)
main motor power (kw)
walking motor power (kw)
water consumption (m3/h)
main body weight (kg)
total weight (kg)
1) improve the utilization rate of natural resources:
the mining quarrying machine directly in the ore rock cutting, yield more than 90%, while traditional quarrying method combining use thermal cutting - Fried - blast - break, yield only 30% to 30%.
2) less pollution, our mining quarrying machine adopts wet operations, water spewed from sawing plate edge after direct sawing plate and stone material, cut like a sharp sword bean curd, no broken stone, and a little stone slag, little dust, no smoke.
4)save time and cost
The quarrying machine on the track to walk, just 1-2 workers each auxiliary operation can quarrying, maximum extent, reduces the labor intensity of operators.
