Gasoline hand held internal combustion rock drill

FOB Reference Price:Get Latest Price
$500.00 - $800.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
gasoline drilling rig
Power Type:
Gasoline
Place of Origin:
Shandong, China
Brand Name:
BAFANG
Model Number:
YN27C
Usage:
Coal
Voltage:
220V/380V
Power(W):
1.5KW
Dimension(L*W*H):
746x345x229mm
Weight:
27kg
Certification:
ISO CE
Name:
internal combustion rock drill
After-sales Service Provided:
Overseas third-party support available
Warranty:
1 Year
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
qingdao
Lead Time :
Shipped in 3 days after payment

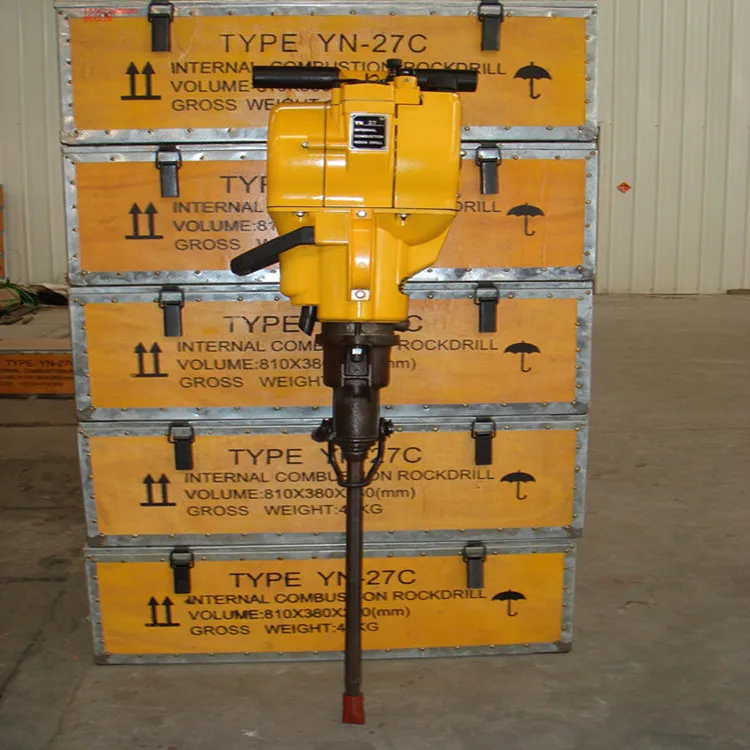

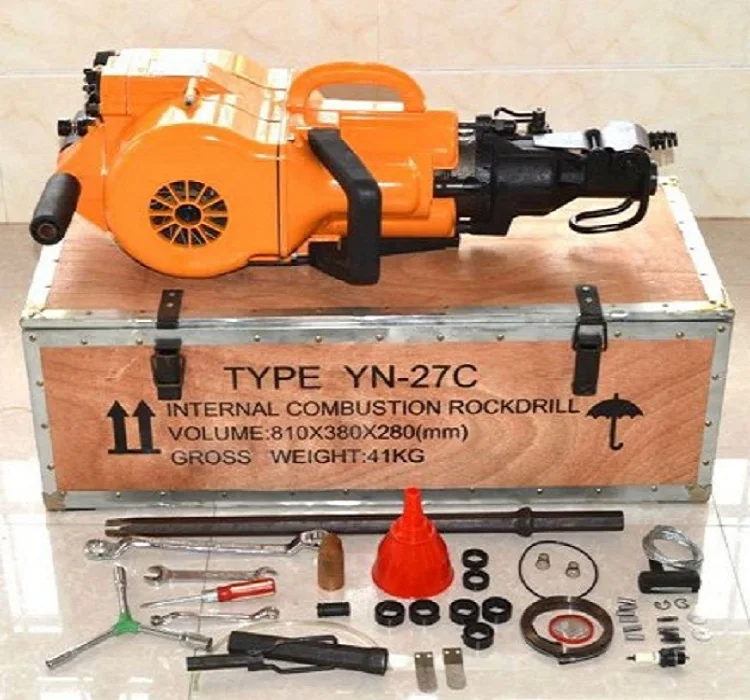

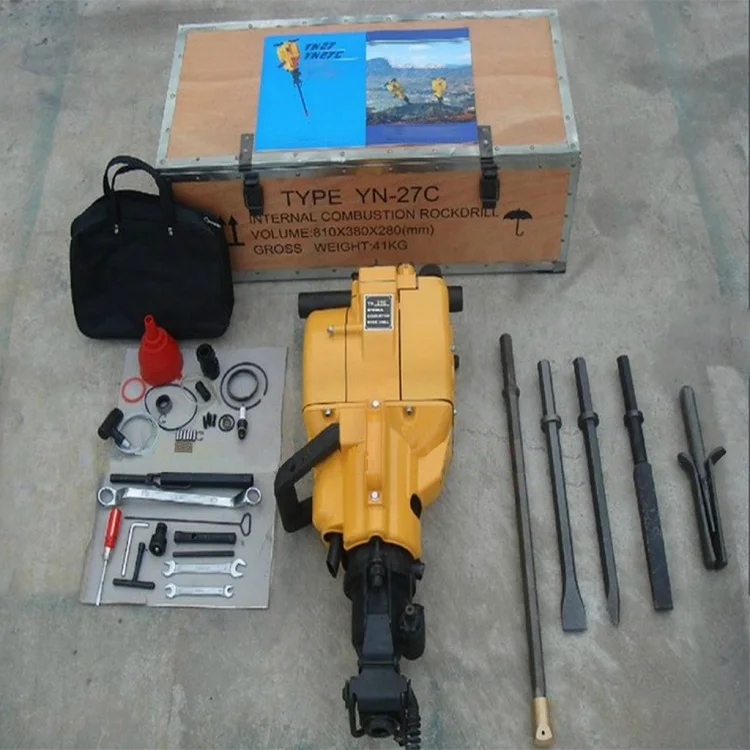

Gasoline hand held internal combustion rock drill

Instruction

The Internal Combustion Rock Drill Type YN 27C has functions of drilling hole, cleavage, bruising, tamping and chiseling. It is widely used in mine, road construction, quarrying, national defense works, etc.

Feature:

1. Easy to operate , just turn the handle to make it work.
2. Time and labor saving, Drilling fast and high efficiency.
3. First-class level Drilling Tools, suitable for site without power or pressure equipment, it has wide adaptability for high mountain and plain, extreme temperature (40 to -40)
4. Used to drill vertical downward hole(max depth 6m) and and <45° upward hole.
5. Light Drilling Tools, only 27kgs, easy to carry.

Paramater

Model

YN27C

Weight of main machine

27kg

Type of carburetor

Hand needle valve, no floating type

Ignition system

Controllable silicon , contactless system

Displacement of engine piston

185cm³

Rotating speed of engine

≥2450 r/min

Rotating speed of drill rod

≥200 r/min

End of drill rod dimensions

Hexagonal 22x108 mm

Max drilling depth

6m

Tank capacity

1.14 L

Drilling speed

≥250mm/min

Mixture ratio of gasoline and lubricating oil(in volumes)

12:1

Clearance of spark plug

0.5~0.7mm



Welcome to contact me!

Jining Bafang Mining Machinery Group Co.,Ltd.

veeggie wang

Tel:+86-537-2228876

Whatsapp:+8613012658590

Wechat:13012658590

Email:veeggie(a)163.com

Add:Room1903,Xieying Science and Technology Building Jinyu road, Jining,Shandong,China(mainland)
