Mini domestic horizontal wind turbine generator motor

FOB Reference Price:Get Latest Price
$100.00 - $350.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
BAFANG
Model Number:
BF-450W
Type:
Wind Power Generator
Product name:
wind generator motor
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
WOODEN BOX OR CARTON
Port
QINGDAO
Lead Time :
Shipped in 5 days after payment

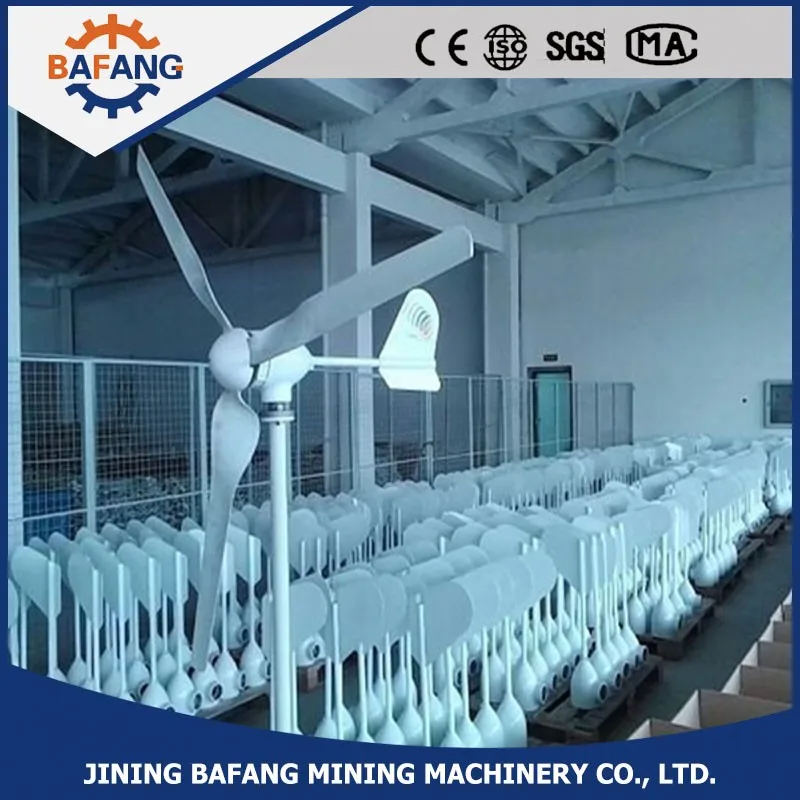

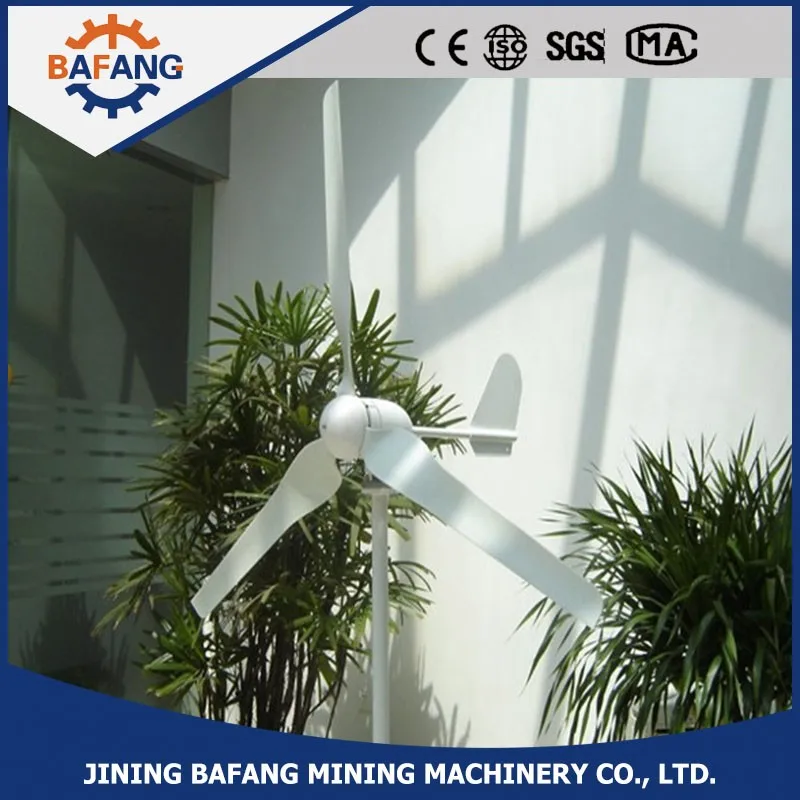

Mini domestic horizontal wind turbine generator motor

Introduction

1. the case of aluminum alloy, small size, light weight, beautiful appearance, running vibration is low.

2holding hoop or flange installation, good strength, easy installation and maintenance.

3reinforced glass steel wind turbine blades, with the optimized aerodynamic design and structure design, starting with low wind speed, high wind energy utilization coefficient, increase the annual power generation.

4. The tail rudder adopts automatic yaw design, tail type, anti typhoon ability, running safe and reliable.

5. power generation using patented technology of neodymium iron boron permanent magnet AC generator rotor and stator design special, effectively reduce the resistance torque of the generator, and use of a wind wheel and a generator has good matching properties, unit operation reliability.

6. can choose the maximum power tracking intelligent controller, effectively adjust the current voltage.

Technical parameters

Model Name                      CF-450

Rated power                       450W

Maximum power                   550W

Rated voltage                      12/24V

Start wind speed                    1.5m/s

Rated wind speed                   10m/s

Safe wind speed                    35m/s

Gross weight                       17 kg

Diameter of wind wheel              1.5 meters

Blade number                       3

Blade material enhanced nylon fiber Fuselage material aluminum alloy

Control system                    electromagnetic / auto adjust the angle of the wind

Yaw mode:                           direct tail

Pagoda form:                       The form of cable / independent tower tower

Working temperature -                  40 -80

Note:

we also have 300w,600w,800w and 1000kw.If you have some specific need, i could give you a quotation.

For more detailed specifications please feel free to contact with us

Jining Bafang Mining Machinery Group Co.,Ltd

Name: Mavis Zhang

Telephone: 86-537-2228876    +13012657265

Skype: live:2050719885

QQ: 3248433951

Trademanager: cn1510988628

E-mail: mavis(a)sdbafang.com

Web: www.bafangmachine.com
