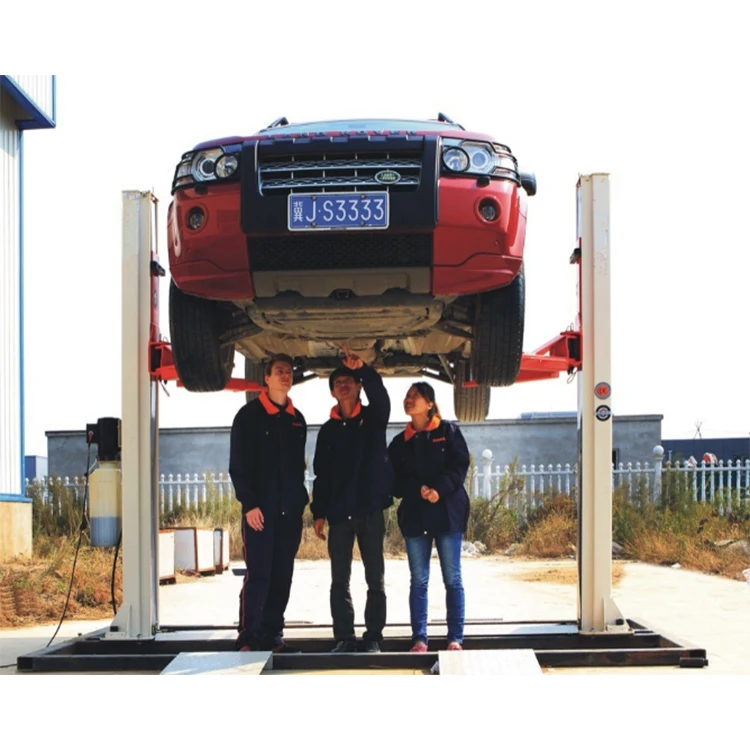

Automatic lock release clear floor type hydraulic 2 post lift

FOB Reference Price:Get Latest Price
$900.00 - $1,500.00 / Pieces | 1 Piece/Pieces two post lift (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Design:
Two Post
Type:
Double Cylinder Hydraulic Lift
Certification:
CE
Lifting Capacity:
4500kg
Lifting Height(mm):
1800mm
Overall Width(mm):
3600mm
Place of Origin:
Shandong, China
Brand Name:
bf
Model Number:
L-2-45D
Warranty:
12 Months
Name:
2 Post Car Lift
Lifting Time:
50s
Power Supply:
380V/220V
Net weight:
550kg
Color:
Customer Request
Motor power:
2 .2kw
Motor Voltage:
3 phase 380v or single phase 220v
Through width:
2400mm
Overall height:
2857mm
Packaging size:
2800mm*500mm*750mm
Supply Ability
Supply Ability:
200 Piece/Pieces per Day two post lift
Packaging & Delivery
Packaging Details
wooden box
Port
qingdao
Lead Time :
Within 10 working days after receive payment

Automatic lock release   clear floor type hydraulic 2 post lift

Main features:

1.Dual hydraulic cylinders drive, stable lifting and lowering. Adopt two steel cables for equalization, force two carriages to move synchronously.
2.Manual lock release mechanism on both sides
3.Carraige travels in the column through slide blocks.



Parameter:

Lifting height:1803mm

Min height:92mm

Rise time:≤50s

Down time:≤50s

Through width:2400mm

Overall width:3614.12mm

Overall height:2857mm

Motor power:2.2kw

Motor voltage:3 phase 380v or single phase 220v

Net weight: 550kg

Packaging size:2800mm*500mm*750mm
