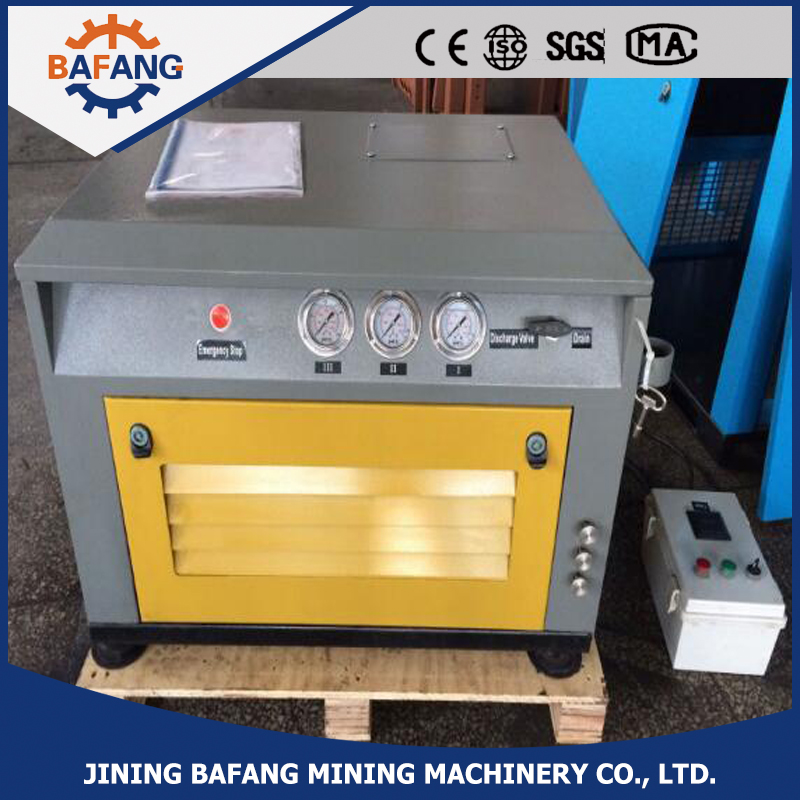

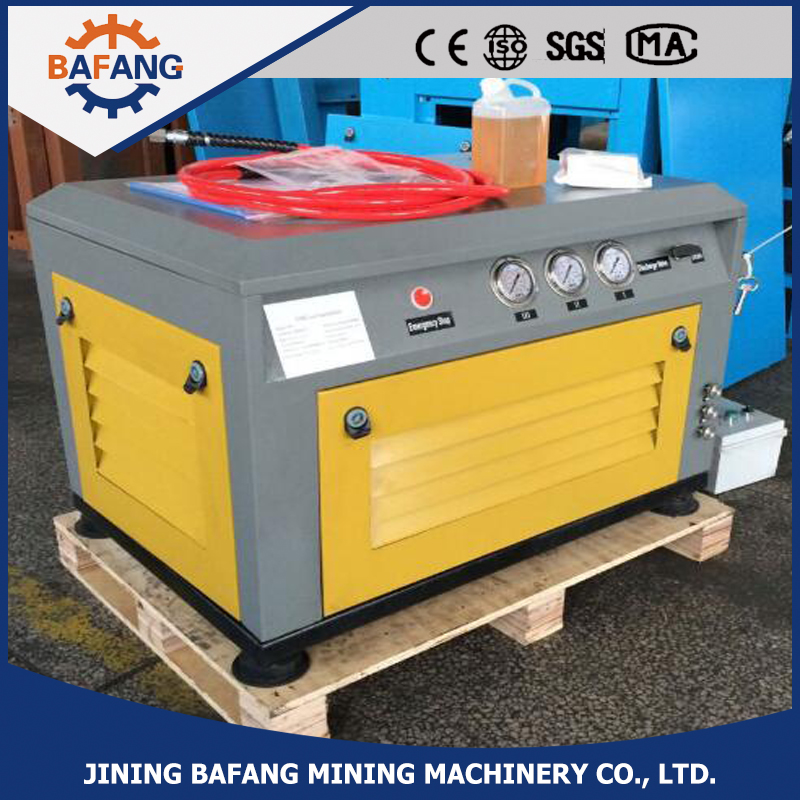

Small Natural gas compressor/portable cng compressor home natural gas compressors for car

FOB Reference Price:Get Latest Price
$2,000.00 - $3,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
MF3A
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
BAFANG
Dimension(L*W*H):
900*600*500mm
gas:
cng
Condition:
New
Configuration:
Stationary
Power Source:
AC Power
Lubrication Style:
Oil-free
Mute:
Yes
After-sales Service Provided:
Overseas third-party support available
Voltage:
220V/380V
Weight:
130kg
Certification:
ISO9001 CE
Warranty:
1 Year
Type:
Other
Supply Ability
Supply Ability:
100 Piece/Pieces per Month
Packaging & Delivery
Packaging Details

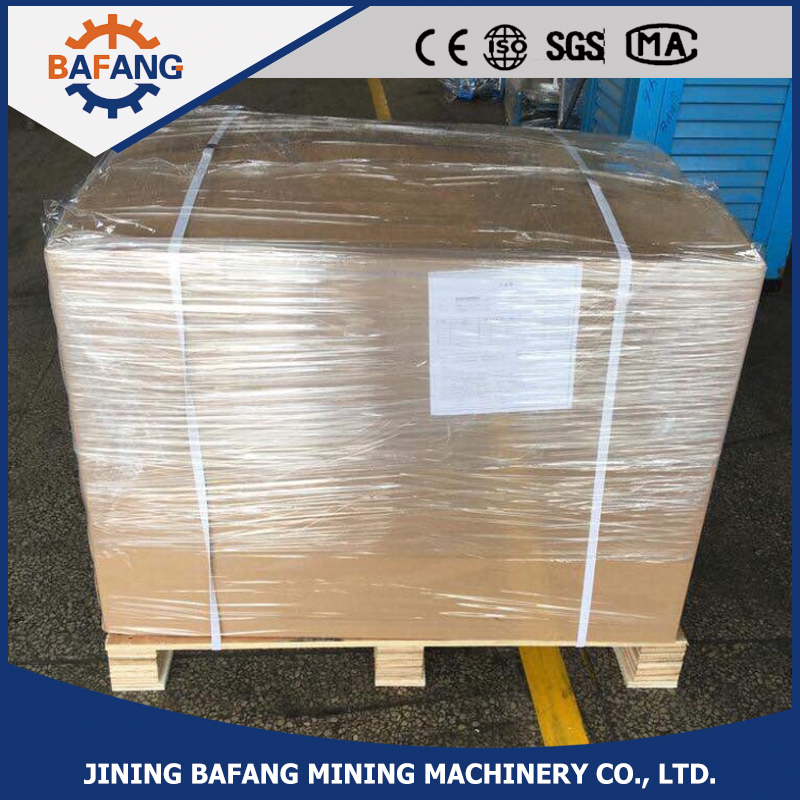

wooden case
Port
Qingdao
Lead Time :
shipped 3 days after payment

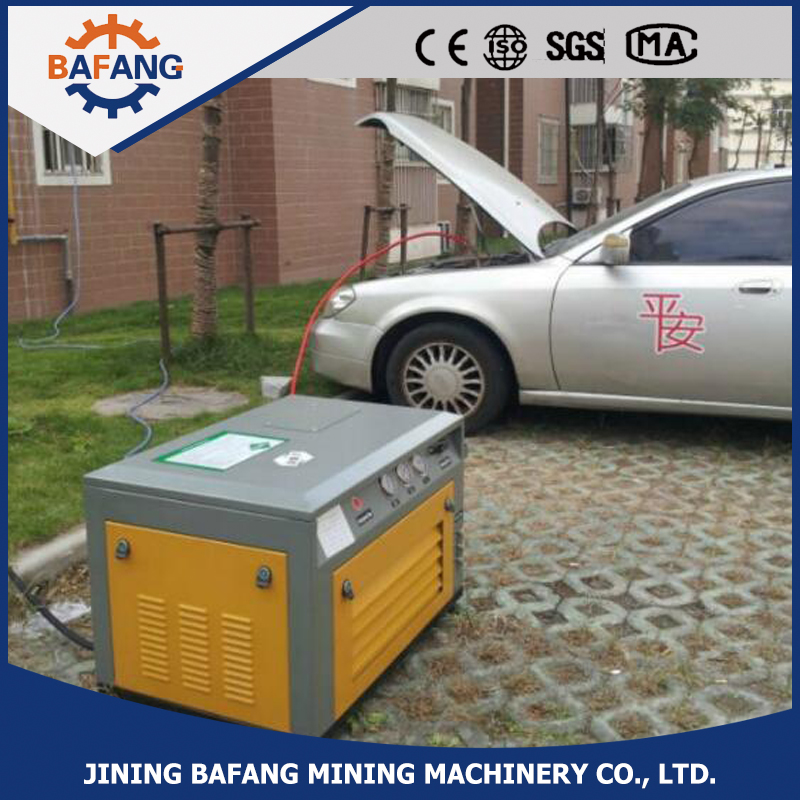

Small Natural gas compressor/portable cng compressor home natural gas compressors for carCNG Compressor could compress your family line natural gas to pressure level 20-25MPa, 200-250 bar, 3000-3600 psi to refuel NGV (Natural Gas Vehicle), it take about 2-4 hours every time to fill full 60liters / 18 Gallon CNG tank. the compressor have main features as follows: high reliability and safety, easy and simple operation, last long life and durable ,low noise and low vibration , low maintenance cost for rebuilt, auto stop when fill full tank.

Feature

Simple installation and operation, low service cost .

Anti-explosive designed of this compressor make it running in safety.Separate electric controller equipped.

It is an ideal unit for filling your vehicle at home, for outdoor and indoor use

Single phase electric needed only.

Parameters
5Nm3/h CNG natural gas home compressor
Flow rate5Nm3/h  3cfm
Filling time(60L CNG tank)2.5 hour
-- (200bar 3000psi)
3 hour
--(250bar 3600psi)
Working pressure200bar /3000psi or
250bar /3600psi
Inlet pressureLess than 0.3bar 5psi
Motor powerEX 2.2kw/3.0hp
220v 50/60hz, single phase
Oil separator /oil filter1/1
Safety valve/Alarm sensor1 in final/ option
Time meter1
StarterManual
SwitchAuto stop
Emergency stopManual
Condensate/gasdrainManual
Filling hose connect1
Dimensions(H*W*L)600*900*650 mm
Weight125 kg
Noise level50 db(A)
