JH-5 type Electric Prop Pulling winch for Underground Mine

FOB Reference Price:Get Latest Price
$1,200.00 - $3,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
bafang
Model Number:
JH
Power Source:
Electric
Application:
Auto
Capacity:
100KN
Product name:
JH-5 prop pulling winch
Type:
JH
Weight:
650kg
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard package or naked
Port
Qingdao
Lead Time :
Shipped in 5 days after payment

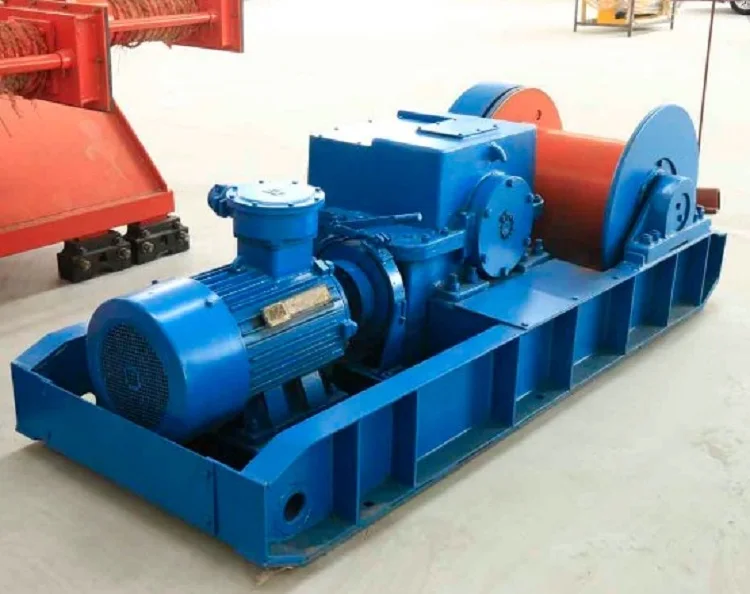

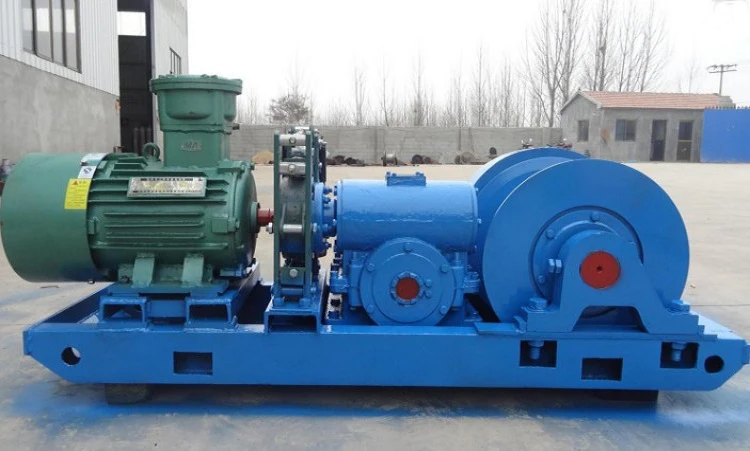

JH-5 type Electric Prop Pulling winch for Underground Mine

Product Description



Prop-pulling hoist also called slow winch, used for the coal mine coal mining working face prop-pulling caving. Because of its low height and light in weight, especially suitable for thin coal seam and steep coal seam mining face, the mining face and a variety of recycled into floor or by waste rock pressure of buried metal pillar. With the improvement of mechanized degree, it is increasingly widely used in mechanization mining face, the installation of various equipment and spare parts, recycling traction.



Technical parameter

Model

JH-5

JH-8

JH-14

JH-20

JH-30

Traction(kn)

50

80

140

200

300

Rope speed(m/s)

0.17

0.09

0.094

0.1

0.13

Rope diameter(mm)

16

17

22

26

31

Rope capacity(m)

80

100

130

170

220

Electric power(kw)

7.5

11

18.5

22

45

Dimension(mm)

1450*512*515

1600*530*670

2050*680*915

2200*968*864

3300*1075*1034

Weight(kg)

610

650

1350

2500

4460





Company Information



For more detailed specifications please feel free to contact with us

Jining Bafang Mining Machinery Group Co.,Ltd

Name:Mavis Zhang

Telphone:86-537-2228876    +86-13012657265

Skype:live:2050719885

QQ:3248433951

Trademanager:cn1510988628

E-mail:mavis(a)sdbafang.com

Web:www.bafangmachine.com
