Small portable European Heavy type Shop Crane

FOB Reference Price:Get Latest Price
$520.00 - $680.00 / Sets | 1 Set/Sets (Min. Order)
Max. Lifting Load:
1/2ton
Model Number:
scb500A/1000A/2000A
Report Suspicious Activity
Overview
Quick Details
Max. Lifting Height:
2080mm/2450mm/
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Online support, Engineers available to service machinery overseas
Feature:
Truck Crane
Condition:
New
Application:
Workshop
Rated Loading Capacity:
1-2ton
Rated Lifting Moment:
240 KN*m
Span:
2250~5110mm
Place of Origin:
Shandong, China
Brand Name:
bafang
Certification:
CE/ISO9001
Product name:
Small portable Shop Crane
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden frame
Port
QINGDAO

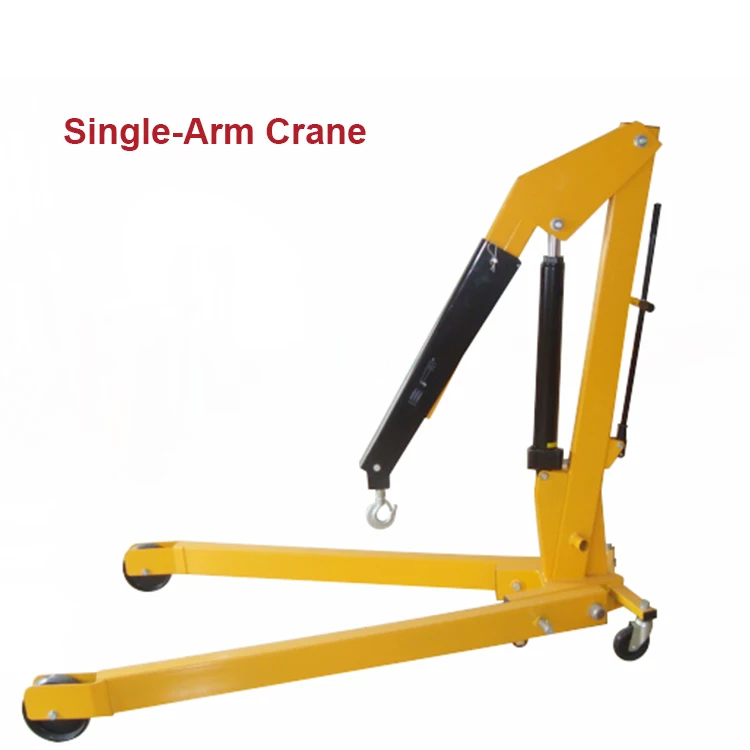

Small portable European Heavy type Shop Crane



Heavy-duty folding design, high-quality fast lifting cylinders, saving time and effort
Boom length three-position adjustable, heavy-duty rotatable hook configuration forging
125% overload factory tested to meet the European CE safety standards
You must be in strict accordance with the position of the boom where the rated load operation
Overload use will lead to consequences and other side-arm hanging imbalance

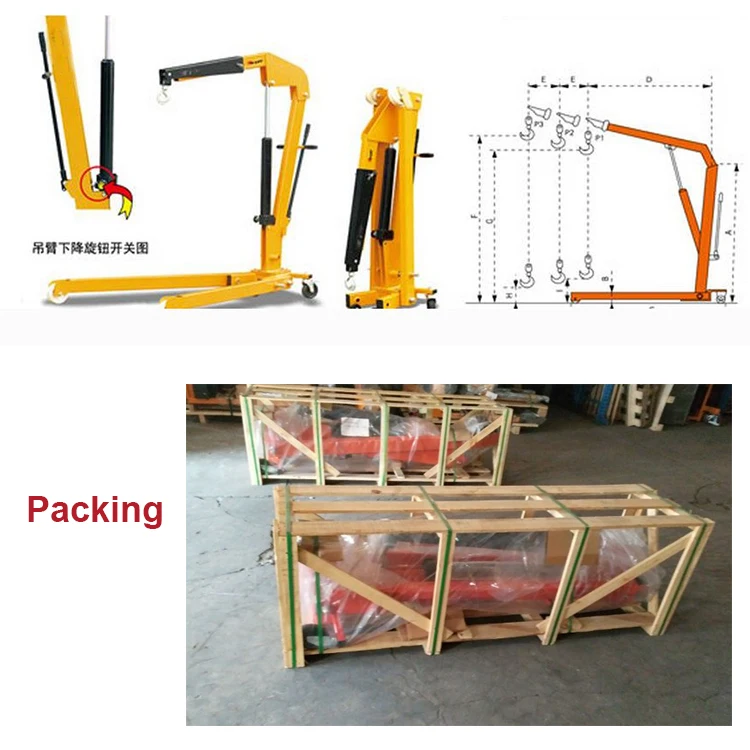

Model

SC500A

SC1000A

SC2000A

Rated load P1(KG)

500

1000

2000

Rated load P2(KG)

425

800

1700

Rated load P3(KG)

350

700

1500

Size A(mm)

1410

1675

1690

Size B(mm)

165

90

205

Size C(mm)

1510

1630

1900

Size D(mm)

895

1230

1290

Size E(mm)

102

150

150

Size F(mm)

2080

2450

2490

Size G(mm)

1920

2320

2330

Size H(mm)

150

-

-

Size I(mm)

340

245

230

Total width(mm)

970

1120

1165

Total height(mm)

2280

2660

2720

Inside leg width(mm)

778

894

960

N.W(KG)

75

115

165
