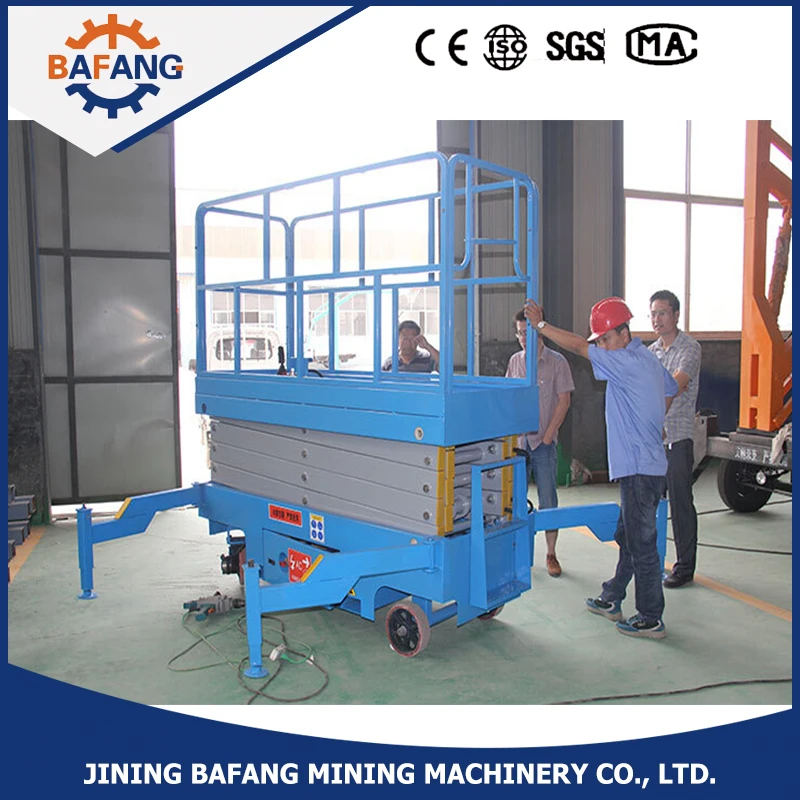

Self-propelled Hydraulic scissor lifts

FOB Reference Price:Get Latest Price
$1,500.00 - $3,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Bafang
Model Number:
GTJZ 06
Lift Mechanism:
Scissor Lift
Lift Drive / Actuation:
Hydraulic
Power:
380V
Rated Loading Capacity:
230kg
Min. Lifting Height:
0.9m
Max. Lifting Height:
7.8m
Table Size:
CUSTOMIZED SIZE
Overall Dimensions:
186*760*218mm
Weight:
1415kg
Certification:
ISO
Product name:
Hydraulic Platform Lift
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden Case
Port
Qingdao
Lead Time :
shipped in 7 days after payment

Self-propelled Hydraulic scissor lifts

Introduction:

1. Hydraulic System

All machine functions are performed by the hydraulic system. The whole hydraulic system is divided in two parts: one part is used for driving and steering function, the other part is used for platform lifting function.

2. Electrical System

In this system, Use four six-volt batteries to drive the hydraulic pump and lift function controls. Batteries are charged by external power source.

3. Machine Controls

The machine is equipped with operational controls, which is located in the ground controls box. The controls transfer data  through a high-speed data bus.

Parameter:





Product Specifications

GTJZ 06

GTJZ 08

GTJZ 10

GTJZ12

working height

7.8m

10m

12m

13.8m

platform height

5.8m

8m

10.0m

12m

platform height stowed

1.07m

1.23m

1.37m

1.49m

platform length

1.67m

2.27m

2.27m

2.27m

platform extension length

0.9m

0.9m

0.9m

0.9m

platform width

0.76m

0.81m

1.17m

1.17m

Wheelbase

1.31m

1.87m

1.87m

1.87m

Ground Clearance

0.1m

0.1m

0.1m

0.1m

Lift capacity

230kg

230kg

320kg

320kg

Lift Capacity-Extension Deck

113kg

113kg

113kg

113kg

Lift-Up

27s

37s

45s

50s

Lift-Down

22s

32s

35s

38s

Weight

1415kg

2250kg

2440kg

2860kg

Drive Speed(Platform Elevated)

0-5km/h

0-3.5km/h

0-3.5km/h

0-3.5km/h

Drive Speed(Platform Lowered)

0-0.8km/h

0-0.8km/h

0-0.8km/h

0-0.8km/h

Turning Radius-inside

1.64m

2.10m

2.14m

2.14m

Grade ability

30%

25%

25%

25%

Maximum Tilt

Non-marking solid tires

15*5

15*5

15*5

15*5

Battery

6v*4/225Ah

6v*4/225Ah

6v*4/225Ah

6v*4/225Ah
