High efficiency rock stone diamond chain saw machine

FOB Reference Price:Get Latest Price
$1,500.00 - $3,000.00 / Piece | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
bafang
Model Number:
BF-005
Certification:
CE
Feature:
4-Stroke, Single Cylinder
Power Type:
Petrol / Gas
product name:
diamond chain saw machine
Rated power:
1.5KW /1.8KW
Voltage:
3-phrase 127V / 3-phrase 330V
Rated frequency:
50Hz
Chain plate cutting size:
47cm/35CM
Water pressure:
Water pressure
Packing size:
800*30*30cm
Weight:
16.5KG
Supply Ability
Supply Ability:
50 Piece/Pieces per Month diamond chain saw machine
Packaging & Delivery
Packaging Details
carton packing
Port
qingdao
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 10 To be negotiated

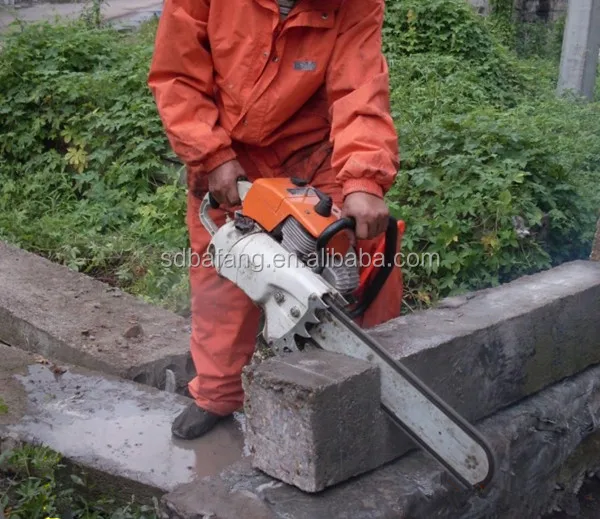

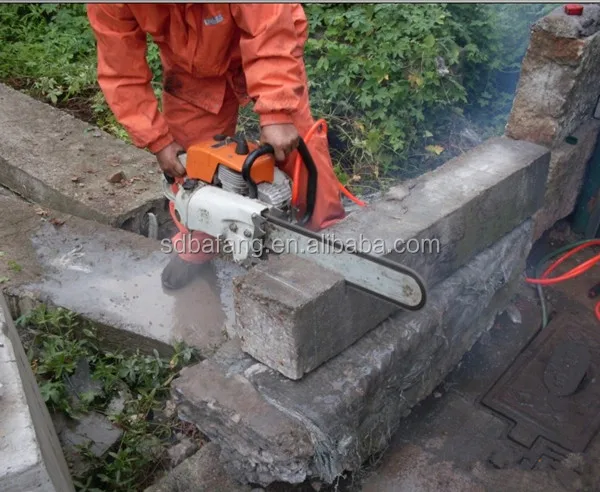

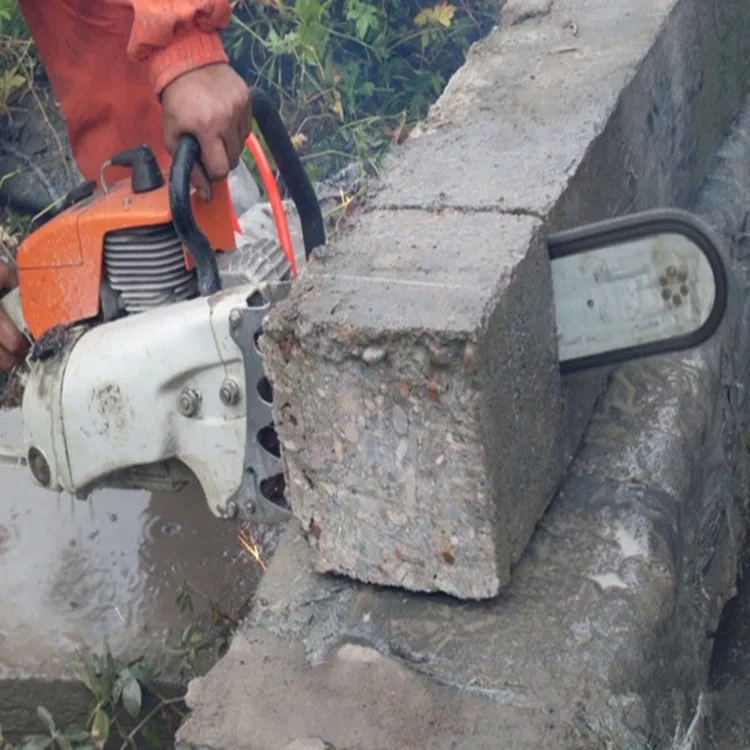

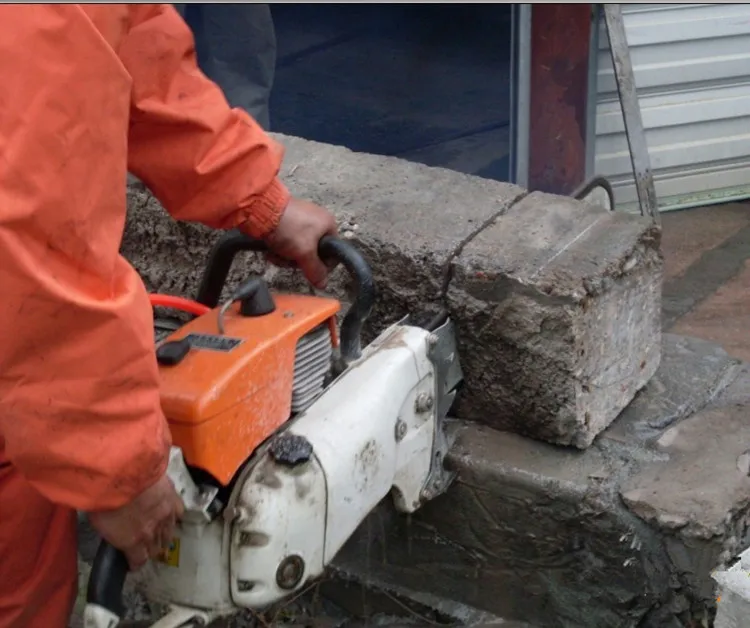

High efficiency rock stone diamond chain saw machine


 1.Light weight and powerful function

2.The handle and the guard matched with the body dynamics

3.With laser welded segments impregnated with diamond and water channel for chain lubrication and cooling.

4.Option different bars and chains for cutting depth 330mm~500mm, plunge cutting for window and door openings, air conditioner cutouts, and notching or trimming and cutting square corners without over cut.

Feature:

1.Powerful functions, small size, light weight, portable;

2.Can cut concrete, reinforced concrete, pipes, brick and so on;

3.Can quick cut collapsed concrete precast panel, and quick open hole on the wall and precast panel;

4.Key components like motor, diamond chain, chain panel all import from USA

5.Diamond weld on the chain is about twice as same type in home, quicker cutting speed and longer working life.

Parameter:

Chain plate cutting size

47cm/35CM

Spindle speed

2800 r/min

Speed of mainshaft

7.5N.m

Rated power

1.5KW  /1.8KW

Voltage

3-phrase 127V /  3-phrase 330V

Rated frequency

50Hz

Phrase qty

3N

Rated Current

10.5A

Electric efficiency

81%

Working mode

S2-30min

Water pressure

0.2~0.6mpa (make sure the water is

used for cooling, is for saw chain

lubrication and cleaning)

Packing size

800*30*30cm

Weight

16.5KG

Used for

Cutting coal seam, rock, pipes, bricks, wood.
