Suitable for 50HP tractors square hay baler factory supply

FOB Reference Price:Get Latest Price
$8,990.00 - $14,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
BFFQ-1.9
Report Suspicious Activity
Overview
Quick Details
Warranty:
1Year
Application:
agriculture
Type:
Square Baler
Operating Speed:
3-4T/h
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Bafang
Dimension(L*W*H):
4500*2550*1750MM
Weight:
1820 kg
Certification:
ISO
Product name:
50HP tractors Square Baler
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden box
Port
Qingdao

Suitable for 50HP tractors square hay baler factory supply

Product Description



BFFQ-1.9 square bale picking and baling machine is a new type of high efficiency positive traction bale picking and baling machine. It is widely used in farmland recycling of various crop straws.

Features:

(1) Imported German knotter and main transmission system, the performance of the whole machine is stable, and the bundle ratio is high.

(2) The whole machine has a symmetrical longitudinal axis, good driving stability, easy traction, and can be used to work on small blocks and irregular blocks.

(3) The wide low-profile spring-toothed drum type picker with a width of 1.9 meters is equipped with contoured wheels on both sides, which not only reduces the loss of straw leakage, but also reduces the lifting height when the hay is picked up. The grass strips are rarely disordered, reducing the detachment of the buds between the leaves, which is especially important for legumes such as cockroaches.

(4) The baling chamber and the needle have a high enough ground clearance. When working in a low-lying area, the needle does not touch the ground, thus eliminating the traditional needle-protecting frame. The picker is equipped with a contour wheel for working in low-lying areas.

(5) The grass strips from the picking to the formation of the bale landing always make the pasture move in a straight line in the machine. The grass strip conveying and bundling process is reasonable, which is beneficial to increase the reciprocating frequency of the piston and improve the production capacity.



Technical parameter

Model

BFFQ-1.9

Size(Length*Width*Height)

4500*2550*1750MM

Pick up width

1900MM

Total weight

1.82T

Working efficiency

3-4T/h

Baling specification

Cross-sectional area

360×460mm



Bale length

310~1300mm



Bale density

120~180kg/m3

Power

More than 50HP Tractor

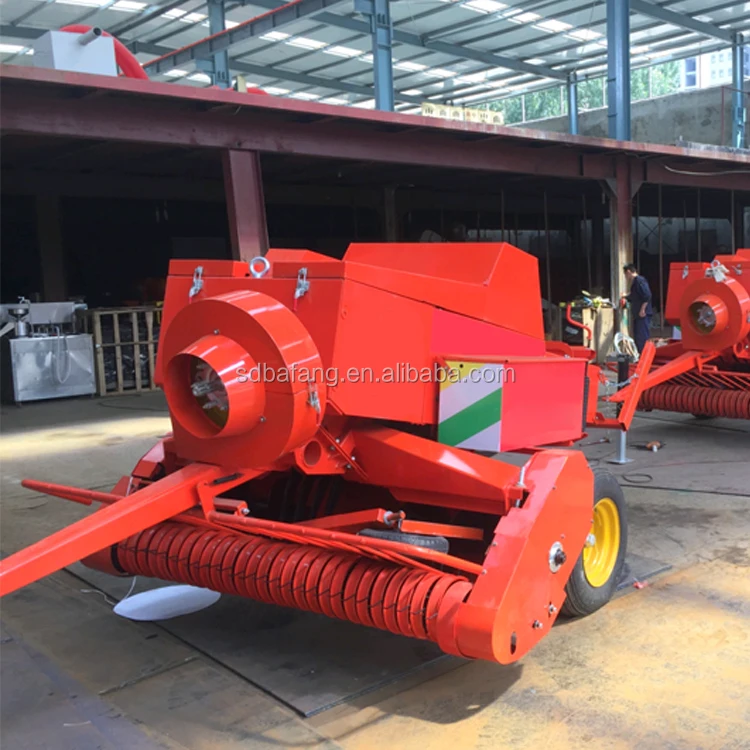

Product pictures
