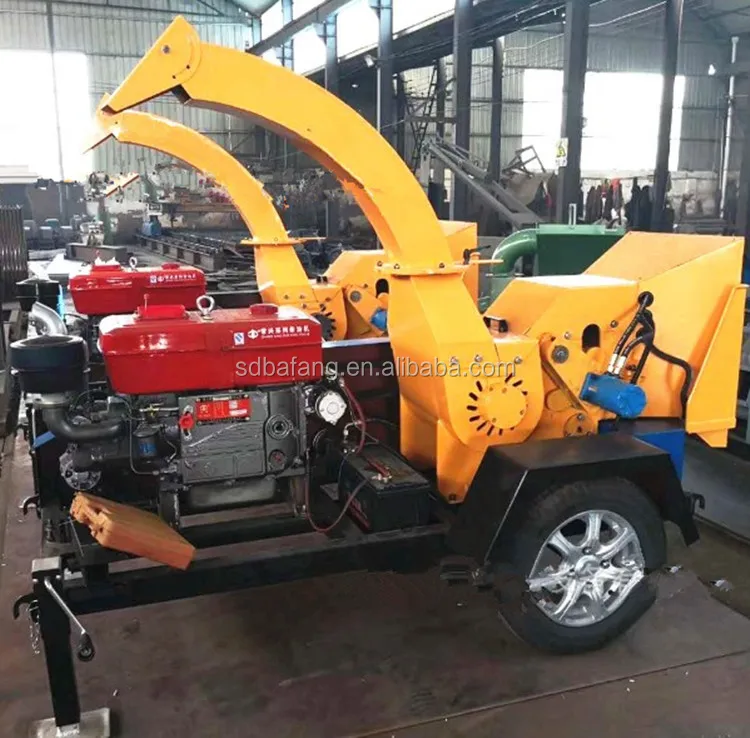

Diesel power mobile garden wood chipper machine/branch grinder

FOB Reference Price:Get Latest Price
$2,800.00 - $5,000.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
BF-40
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
BAFANG
Voltage:
diesel engine
Power(W):
42HP
Dimension(L*W*H):
2000*1500*1800mm
Weight:
1000kg
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Online support
Product name:
wood chipper
Supply Ability
Supply Ability:
100 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
wooden case
Port
Qingdao Shanghai
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 10 To be negotiated

Diesel power mobile garden wood chipper machine/branch grinder

Description:

The wood chipper consists of a body, a middle body and a lower body. The middle body is equipped with a triple stator large ring, a pulverizing cutter and a fineness analyzer. The main unit uses an alloy cutter head. It has high wear resistance and thus increases production. It has coarse pulverization, fine pulverization, and centrifugation to pulverize. The motor drives the pulverizer rotor to run at high speed, so that the high-speed airflow generated by the machine produces high-strength impact force, compression force and cutting force on the pulverized material, and achieves a unique pulverizing function. The wood shredder is a new type of woodworking machinery that is ideal for the production of wood series. The wood shredder components are mainly composed of organic shells, bearings, screens, transmission wheels and troughs. All materials are cast from manganese steel. Machinable, pine, miscellaneous, poplar, fir, and original bamboo. Due to its compact structure, small footprint, good chipping quality, low power consumption, and suitable for mobile operations, it is widely used in small and medium particle board and fiberboard production. The preparation section of the enterprise can also be used for the production of commercial wood chips by individual households.

Main Parameter

Engine power

Diesel engine/42HP

Max.chipping diameter

800mm

Grinding disc diameter:

980mm

Feeding system

Mechanical Feeding(standard)

Hydraulic feeding, adjustable speed(option)

Rotating Speed of Cutter

2000r/min

Leaf inlet

762*508mm

Large cutting diameter

200mm

Dimension

2000*1500*1800mm

Weight

2000kg
