Hydraulic steel bending machine for railway

  • >=1 Pieces
    $500.00
Model Number:
YPG-1000
Report Suspicious Activity
Overview
Quick Details
Type:
rail
Material:
Carbon Steel
Dimensions (L x W x H) (mm):
Customer's Drawing
Place of Origin:
Shandong, China
Brand Name:
bf
Certification:
ISO9001-2008
Name:
YPG-1000 Hydraulic rail bender
Supply Ability
Supply Ability:
100 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
wooden box
Port
qingdao

Introduction

    YPG-1000 Hydraulic rail bender is suitable for railway line various models of rail layup for vertical alignment, guarantee the two root rail joint flat.

     This machine is simple in structure, convenient in operation, the use of safe, reliable quality, etc. Suitable for works departments maintenance, overhaul and repair work.



Working principle:



     reciprocating swinging lever, will force on the stay at the top of the straightening of rail, through the other side of the head and middle part of the hook, the rail straightening, make the plunger pump work (oil suction, pressure), high pressure oil into working inside the cylinder, piston rod, according to the principle of leverage, so can achieve lower rail joint for alignment.


Basic structure:



1, the lever

2, plunger pump

3, reversing valve control handle

4, reversing valve

5, fuel tank

6, oil cylinder

7, rod

8, cylinder head,

9, tower straight beam

10, walk road wheel

11, hook,

12, adjustable head

13, walk the road wheel pull.



 Parameters



1.Maximum rail bending force:1100kN
2.Rated rail bending force:1000kN
3.Maximum working pressure:52MPa
4.Non-load efficiency:0.56
5.Adjust the fulcrum (top block) range:±100mm
6.Maximum operating force:436kN
7.Weight:about 190kg
8.Size:1200×300×660

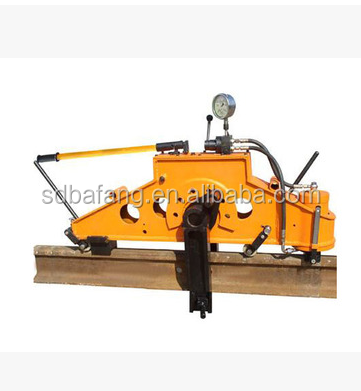

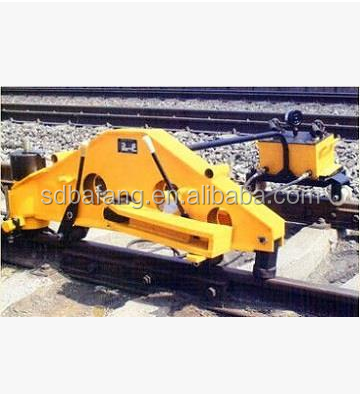

Detailed picture
