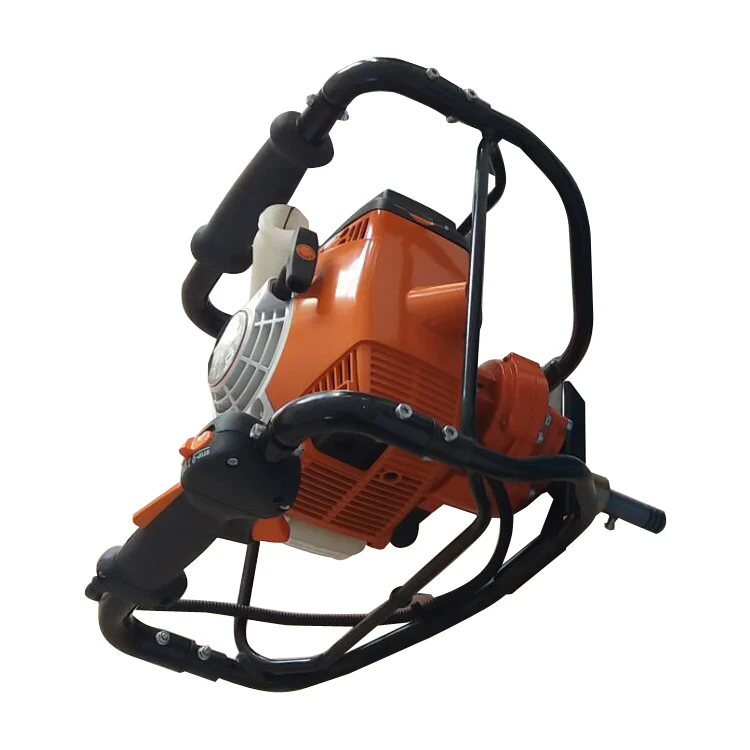

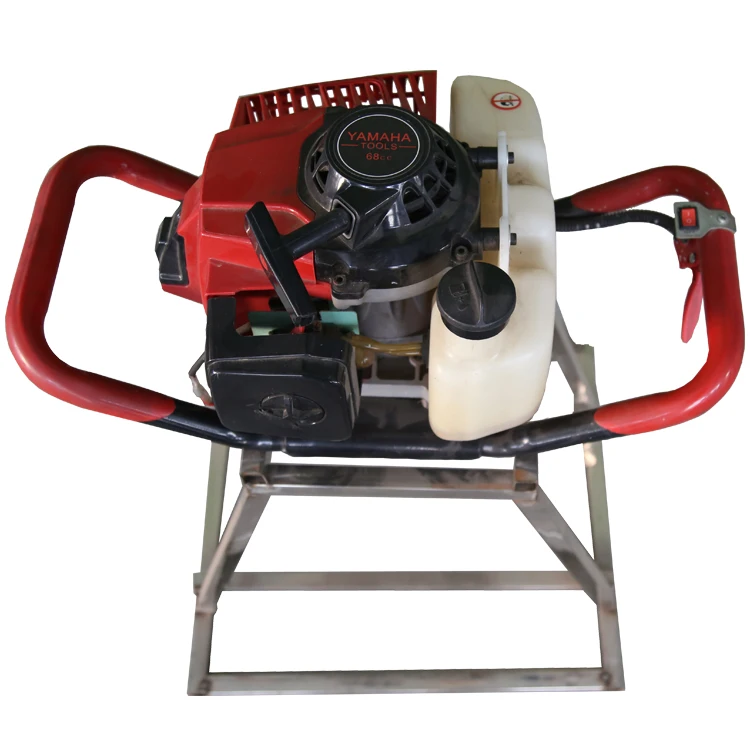

Gasoline Portable Backpack Geological Sampling Core Drilling Machine

FOB Reference Price:Get Latest Price
$3,000.00 - $8,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
XS-15
Power(W):
15KW
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Gasoline
Place of Origin:
Shandong, China
Brand Name:
bafang
Usage:
Coal
Voltage:
220V/380V
Dimension(L*W*H):
38*39*85cm
Weight:
8.8kg
Certification:
ISO
Warranty:
1
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Product name:
Backpack Drilling Machine
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden Case
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 10 To be negotiated

Gasoline Portable Backpack Geological Sampling Core Drilling Machine

Product Description:

The  drill has many field applications including precious and basic metals, academic, environmental, and geotechnical investigation and construction.Academic investigators have used the  portable core drill for a variety of projects including petroleum source, reservoir, cap rock investigations, paleomagnetic studies, hydrogeologic investigations including monitoring well installations

The  portable core drill is a nearly ideal tool for environmental and geotechnical field investigation because it can be used in otherwise difficult of access locations behind buildings, fences and walls, trees, escarpments and much else. The diamond core bits of the system are easily capable of advancing borings through a large array of subsurface materials including steel reinforced concrete, hard rock and some kinds of cemented gravels. Bayonet couplings make loading and unloading of the sampler very easy. Stainless steel components resist rust and are easily decontaminated for high quality sampling.

The  handheld core drill has been used for steel fence post in rock installation, concrete and rock demolition with the use of explosivesor expanding concrete . With the use of larger diameter core bits the drill can be used for clean, fast penetration of concrete walls and foundations for electrical and some plumbing work.

Features:
Easy to carry – weight for a set of 3m standard rig is only 18kg
Flexible operation - easy to dismantle and install, fast coring
Efficient and durable - ultra-thin wall diamond drill, drilling speed, long service life

Overall Dimension

380*390*850mm

Water Consumption

15L/h

Water tank size & weight

67.31*33.28cm/ 4.34kg

Gasoline Consumption about

0.58L/h

Drilling speed

1920r/min

Engine type

Air-cooled 4-stroke petrol engine

Engine size & weight

45*38*37cm/ 8.8kg

Power

1.81Hp

Max drilling depth

30m

Weight of Water injection pump

4.34kg

Rock core drilling diameter

20.50-36.00mm

Drilling hole diameter

26.40-42.50mm

Backpack size

38*39*85cm







contact information



For more detailed specifications please feel free to contact me
Jining Bafang Mining Machinery Group Co.,Ltd
Name: Jillian Chai

Telphone:   +8615064743022

Whatsapp: 15064743022

WeChat: 15064743022
E-mail: sales01(a)sdbafang.com

Web: www.bafangmachine.com
