High Quality Core Drilling Rig Mountain Rock Drill Machine

FOB Reference Price:Get Latest Price
$6,000.00 - $11,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
bafang
Power(W):
35kw
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Farms, Home Use, Construction works , Energy & Mining
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
bafang
Usage:
Coal
Voltage:
220V/380V
Dimension(L*W*H):
2.75*0.95*1.6m
Weight:
120kg
Certification:
ISO
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Product name:
Drilling Machine
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden Case
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 10 To be negotiated

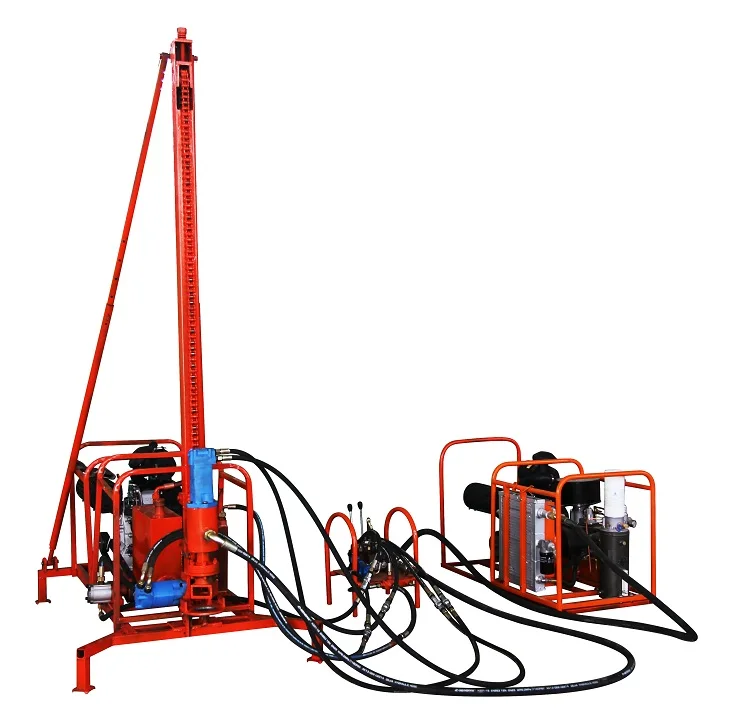

High Quality Core Drilling Rig Mountain Rock Drill Machine

Product Description:

Hydraulic mountain drill rig  is a series of products developed by the company with independent intellectual property rights.

Mountain drilling rig  are widely used in oil drilling exploration, geological exploration, small and medium-sized mines and transportation, defense, rock Drilling and blasting hole in water Conservancy engineering.

Parameter:

Model



Drill depth

50M

Drilling diameter

75-90mm

Drill type

Air downthehole hammer (air hammer)

Drill rod (Dia*L)

φ50*1500

Power head

Rated torque(N.m)

800-900

Rated speed range (r/Min)

0-135

Application

Geological Exploration

Rated torque

1400N.M

Max Pressure of Hydraulic System

20Mpa

Maximum hoist capacity

15KN

Stroke

1.7M

Environment temperature



Hydraulic syetem

Flow(L/Min)

0-60

Work pressure (Mpa)

20

Main engine power (kw)

26

Rotate Speed (r/Min)

3600

Main Features:

1.Designed in strict accordance with the requirements of general industrial design standards, Product Parts, Module unit versatility,  interchangeable.

2.Adopt full hydraulic working mode and buckle type adjustment device, So the structure is simple, easy to operate.

3.Variable pump used in Hydraulic station, So that the entire hydraulic system optimization, with energy-saving, small, low-cost functions.

4. The hydraulic quick lift drill pipe design eliminates the derrick, hoist and gearbox, which makes the operation simpler and safer.
