Strong power good performance crawler type water well drilling machine

FOB Reference Price:Get Latest Price
$12,999.00 - $19,999.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
QY200
Power(W):
55kw
Lead Time:
Quantity(Sets) 1 - 3 >3
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
Bafang
Usage:
Water Well
Dimension(L*W*H):
3300*1550*2300mm
Weight:
4000kg
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support
Name:
Drilling Machine
Product name:
water well drilling
Drilling depth:
200m
Drilling diameter:
115-350mm
Max Drilling Depth:
200m
Application:
Multifunction
Color:
Customised
Engine:
Diesel Power
Packaging & Delivery
Port
Qingdao, tianjin
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 15 To be negotiated

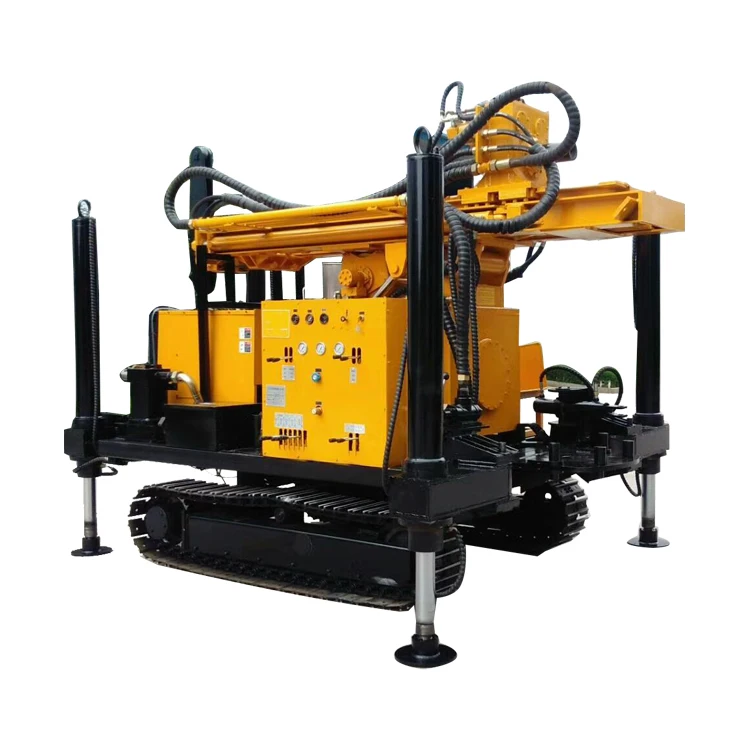

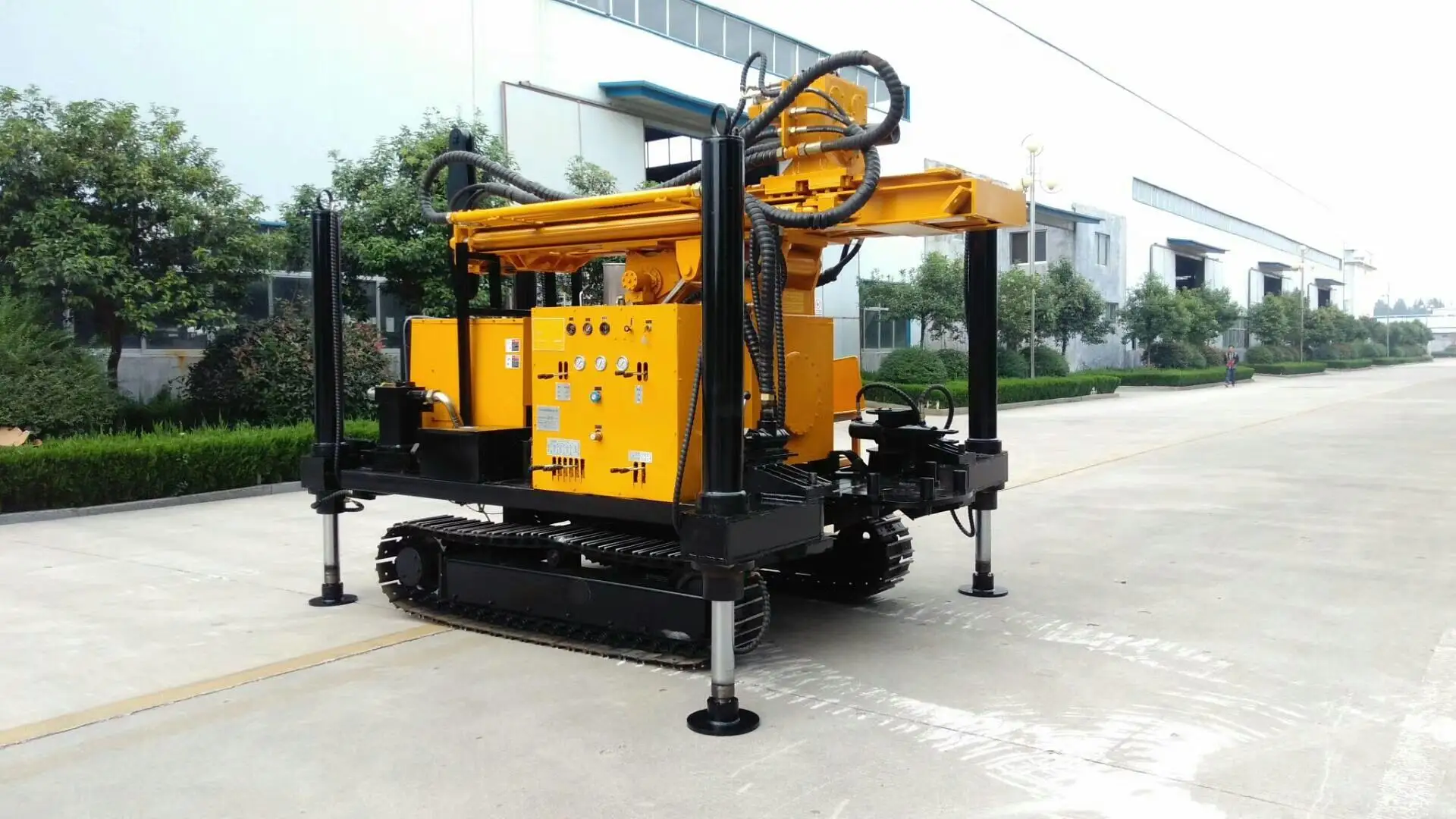

Good quality Crawler type water well drilling rig for sale

The QY200 crawler type water well drilling rig is a highly efficient and versatile drilling equipment. It is mainly used for drilling wells, agricultural irrigation wells, ground source heat pump wells and other wells. It is especially suitable for water intake projects in mountainous and rock formations. The rig can be used for drilling on different formations with a maximum diameter of up to 350 mm. The rig adopts new hydraulic technology, which is equipped with high-torque hydraulic motor rotation and large-diameter hydraulic cylinder propulsion. The famous engine provides power for the hydraulic system, two-stage air filter and the intake air design of the compressed air to extend the service life of the diesel engine. The unique pump set is designed for easy maintenance and reduced maintenance costs. Centralized control of the hydraulic console for easy operation. This series of rigs use excavator crawler chassis for off-road performance. The independent module design allows the rig to be easily mounted on the truck for increased maneuverability. Two-speed swivel and propulsion speeds are available for different piercing needs in soil and rock formations. The combined positioner can adjust and replace the positioning plate according to different types of drill pipe and impactor to ensure accurate and reliable positioning and centering. The hoisting mechanism facilitates the lifting of the drill pipe and the impactor, reducing labor intensity.

Machine Weight (kg)

4000

Machine Dimension (mm)

3300*1550*2300

Working speed (km/h)

0~3

Engine model

YN33GB

Engine data

55kW/2400rpm

Ground clearance(mm)

250

Impactor

DHD360

Grade ability(°)

20

Drilling depth(m)

200

Working air pressure (MPa)

1.05~2.46

Air consumption

(m3/min)

16~35

Drill pipe diameter(mm)

Ø76/Ø89/ Ø102

Drill pipe length (mm)

3000

Drill(Drill bit)diameter(mm)

Ø115~Ø350

Propulsion(t)

8

Lifting power(t)

16

Rotary speed(rpm)

 low speed

40

Fast speed

160

Rotary torque(N·m)

4000
