XYX-3 Wheel walking type water well drilling rig

FOB Reference Price:Get Latest Price
$9,999.00 - $19,999.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
XYX-3
Power(W):
22kw
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Farms, Construction works , Energy & Mining
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Place of Origin:
Shandong, China
Brand Name:
Bafang
Usage:
Water Well
Dimension(L*W*H):
2490*920*1910mm
Weight:
1300kg
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support
Name:
Drilling Machine
Product name:
XYX-3
Application:
water well drilling
Drilling depth:
100-600m
Feature:
High Drilling Efficiency
Drilling diameter:
75-300mm
Color:
Yellow
Max Drilling Depth:
600m
Packaging & Delivery
Port
Qingdao

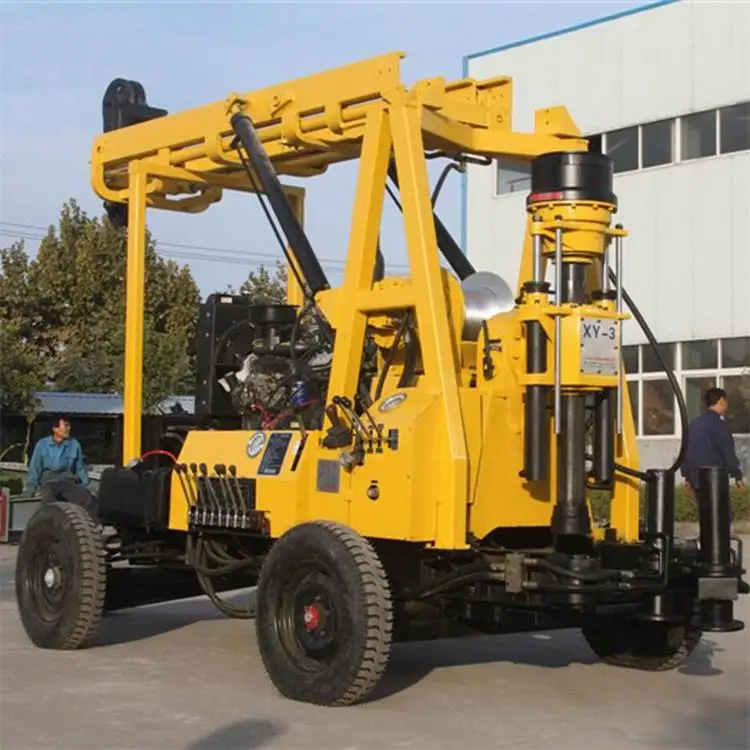

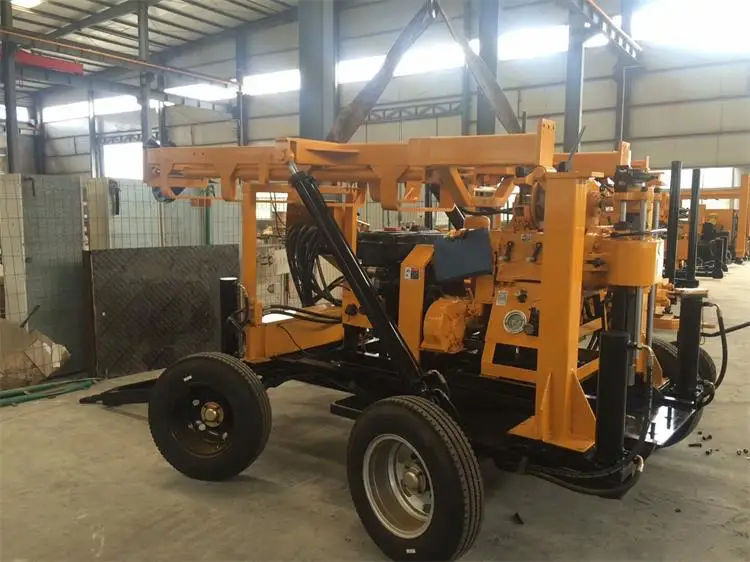

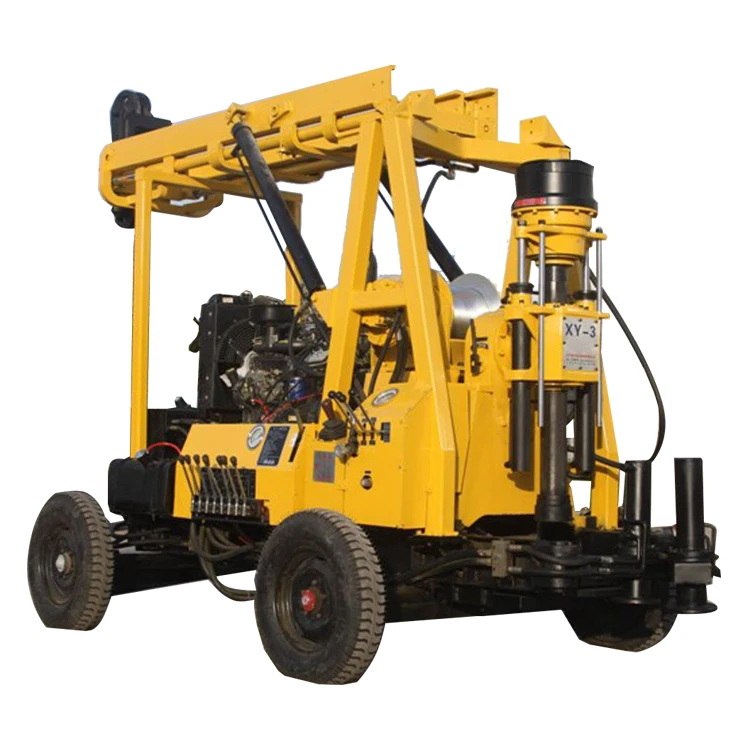

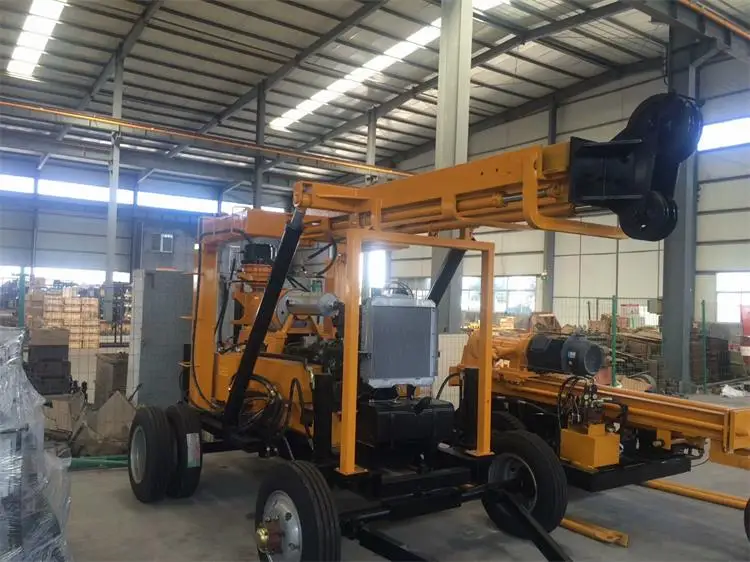

XYX-3 Wheel walking type water well drilling rig

The drilling machine is equipped with a wheeled traveling mechanism and a hydraulic cylinder support. The whole machine is easy to relocate, which is convenient for horizontal adjustment of the drilling machine. It has a hydraulic feeding mechanism to improve drilling efficiency. The drilling machine is equipped with a ball clamping mechanism instead of a chuck. It can implement non-stop reversing bar, high work efficiency, convenient and safe operation. It is equipped with a pressure gauge at the bottom of the hole to indicate the pressure, which is convenient for grasping the condition inside the hole. The lifting and falling towers are hydraulically operated, which is convenient and reliable. The joystick is concentrated, the layout is reasonable and compact, the operation is simple, flexible and reliable.

Machine parameters:

Drilling depth

100   250    300   600m

Drilling diameter

300    200    150    75mm

Opening diameter

300mm

Final hole diameter

75mm

Drill pipe

60mm

Drilling angle

90°--65°

Vertical axis forward speed

32-1057r/min

Vertical axis reversal speed

29-137r/min

Vertical axis travel

600mm

Vertical shaft bore diameter

96mm

Vertical shaft lifting capacity

60kN

Main winch parameter



Single rope lifting speed

0.5,0.9,1.4,1.9m/min

Wire rope diameter

12.5mm

Brake width

90mm

Roll diameter

300mm

Roll capacity

65m

Mud pump (optional) horizontal three-cylinder BW-250 mud pump:

flow

250L/min

Work pressure

7Mpa

Inlet diameter

76mm

Outlet diameter

51mm

Drilling machine dynamic parameters

diesel engine

YN27/power60kw/3200rpm

Motor

Y180L-4 22KW

Wheeled chassis carrying capacity

3.6T

Wheel chassis length

2.6m

Wheel chassis width

2m

Wheel chassis height

0.6M
