Folding electric-hydraulic water well drilling equipment

  • 1 - 2 Sets
    $1,600.00
  • >=3 Sets
    $1,300.00
Model Number:
BF
Power(W):
2 KW
Lead Time:
Quantity(Sets) 1 - 1 2 - 3 >3
Est. Time(days) 3 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Video technical support, Free spare parts, Online support
Place of Origin:
Shandong, China
Brand Name:
Bafang
Usage:
Water Well
Voltage:
380 v
Weight:
150 kg
Certification:
CE ISO
Type:
Rotary Drilling Rig
Power Type:
Electric
Applicable Industries:
Building Material Shops, Farms, Home Use, Construction works
Broken way:
Rotary drill
workyard:
surface of the drill
Color:
Customer Required
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 2 - 3 >3
Est. Time(days) 3 5 To be negotiated
Video Description

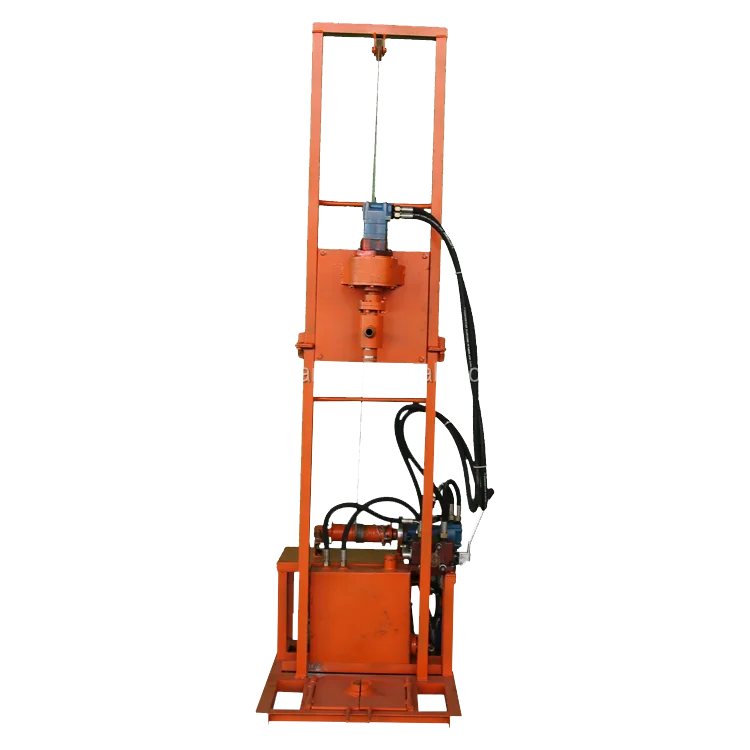

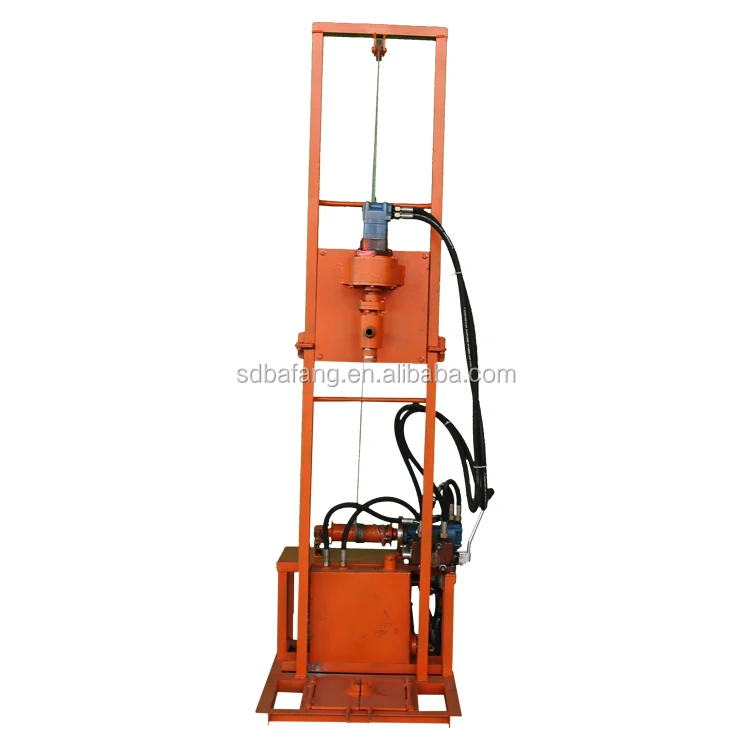

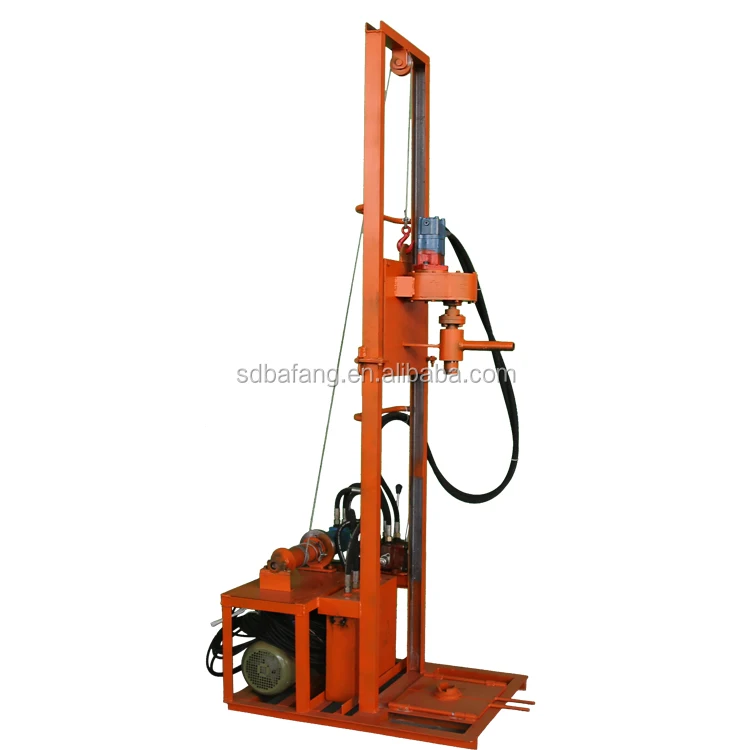

Folding electric-hydraulic water well drilling equipment

Product Description

  The machine is easy to use, simple operation, fast into the hole and 10 meters per hour, the noise is small, operation is extremely simple, single to operation, mechanical dump drill pipe, hit 100 m at Wells, for example, drill pipe removing, on average, about 10 minutes, and mobile and convenient, completion of drilling operation, a single operation to complete moving work.

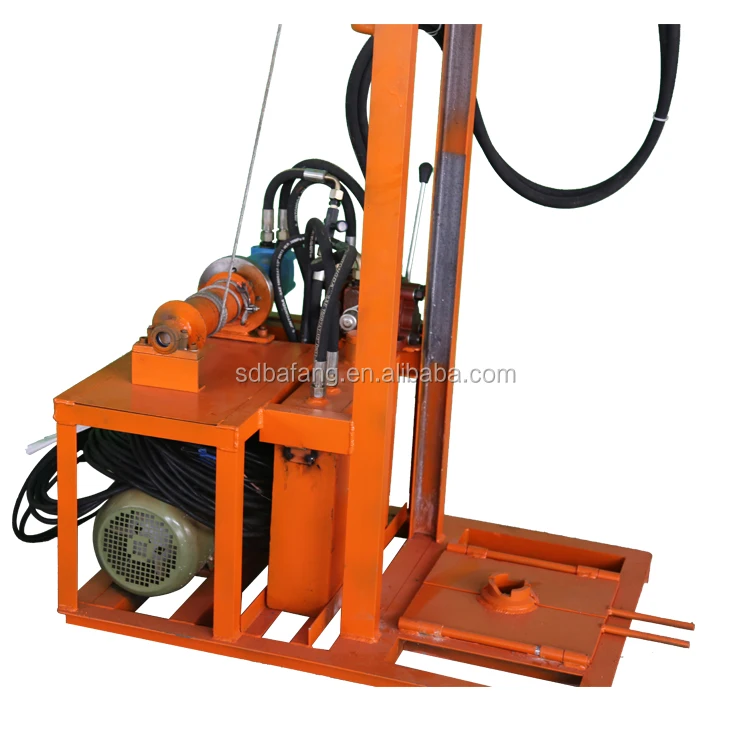

Hydraulic oil pump, parallel gearbox design, separate oil pump, power supply sufficient and reasonable distribution, hydraulic system unique design, power head gear box, dual motor power supply, torque, durable, simple maintenance cost is small.



Product details



model

BF

voltage

380V

hydraulic oil

46#

drilling diameter

32-220mm

Drill rod caliber

1 inch, 1.2 inch, 1.5 inch in various sizes

Bit specification

Multi - diameter alloy and diamond drill bits are optional

depth of the drilling

100m

weight

150kg

Suitable for the soil

Soil layer, flow sand layer, a small amount of rock layer, pebble,
