Hand-held pneumatic anchor drill

  • 1 - 2 Sets
    $300.00
  • >=3 Sets
    $280.00
Model Number:
zqs35 zqs50 zqs60
Power(W):
1.5 kw
Lead Time:
Quantity(Sets) 1 - 1 2 - 8 >8
Est. Time(days) 3 6 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Retail, Construction works , Energy & Mining
Condition:
Used
Type:
Rotary Drilling Rig
Power Type:
Electric
Place of Origin:
Shandong, China
Brand Name:
Bafang
Usage:
Coal
Dimension(L*W*H):
450*206*260 mm
Weight:
20kg
Certification:
CE /ISO
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Online support
impact frequency:
20(Hz)
impact energy:
30
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case / carton
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 2 - 8 >8
Est. Time(days) 3 6 To be negotiated

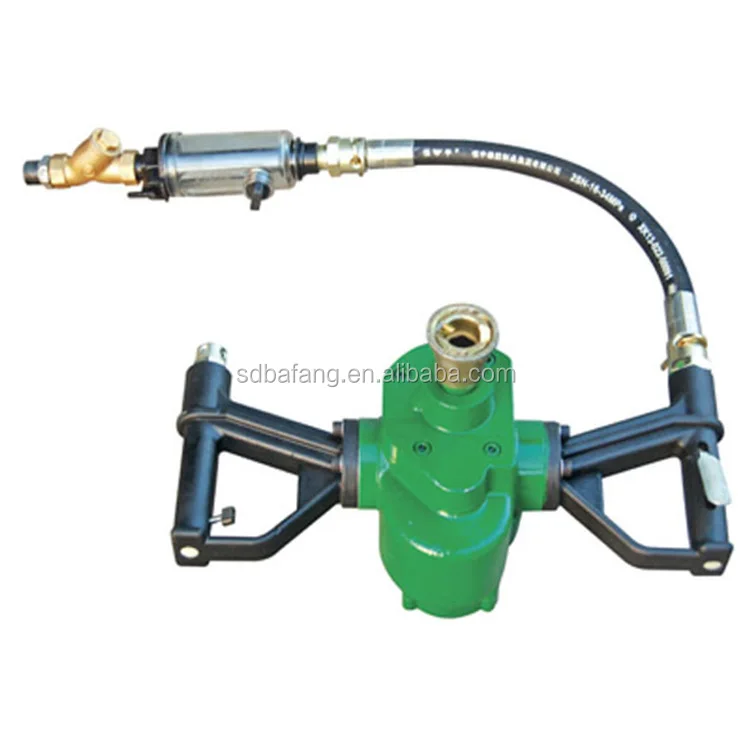

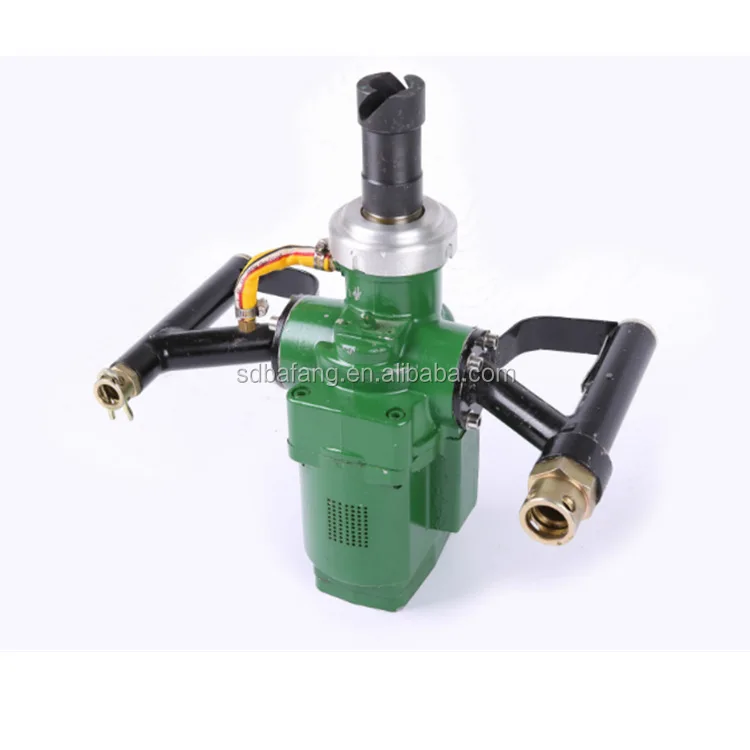

Hand-held pneumatic anchor drill

Product Description

  ZQS type pneumatic hand held bolt bolter is suitable for coal side bolt support or cable support operation in coal roadway with rock hardness f6. It can drill bolt hole and cable hole, and can also mix and install resin coated bolt and cable.



product feature:



The portable pneumatic bolter is small in size, light in weight, simple in operation and convenient in maintenance. Gear pneumatic motor, stable operation, high reliability. The new type of GFRP air leg has the advantages of safety, reasonable structure and strong adaptability.



major parameter:

Model

ZQS-60

ZQS-50

ZQS-35

Working pressure (Mpa)

0.4~0.63

0.4~0.63

0.4~0.63

Rated air pressure (Mpa)

0.5

0.5

0.5

Rated speed (r/min)

330

320

440

Rated torque (N.m)

60

50

35

Stall torque (N.m)

70

57

55

Machine weight (Kg)

20

13.5

13.5









Company Information





Welcome to contact me!

Jining Bafang Mining Machinery Group Co.,Ltd.

Whats app:+8615615570127

We chat:15615570127

Add:Room1903,Xieying Science and Technology
