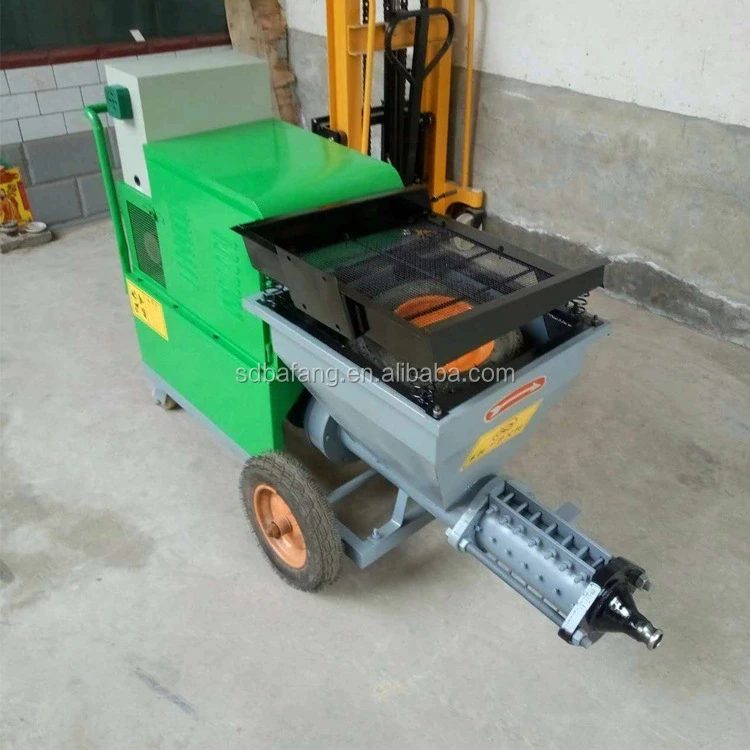

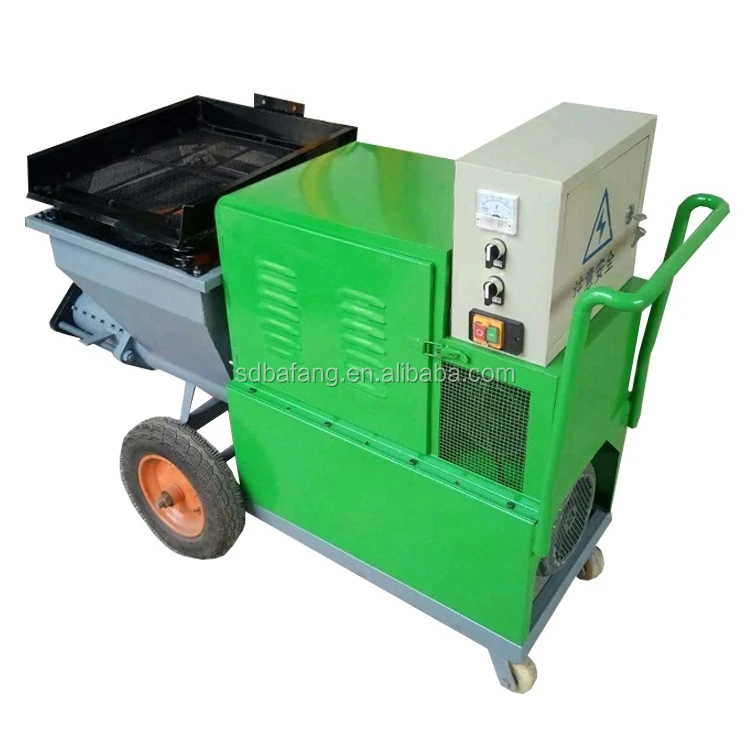

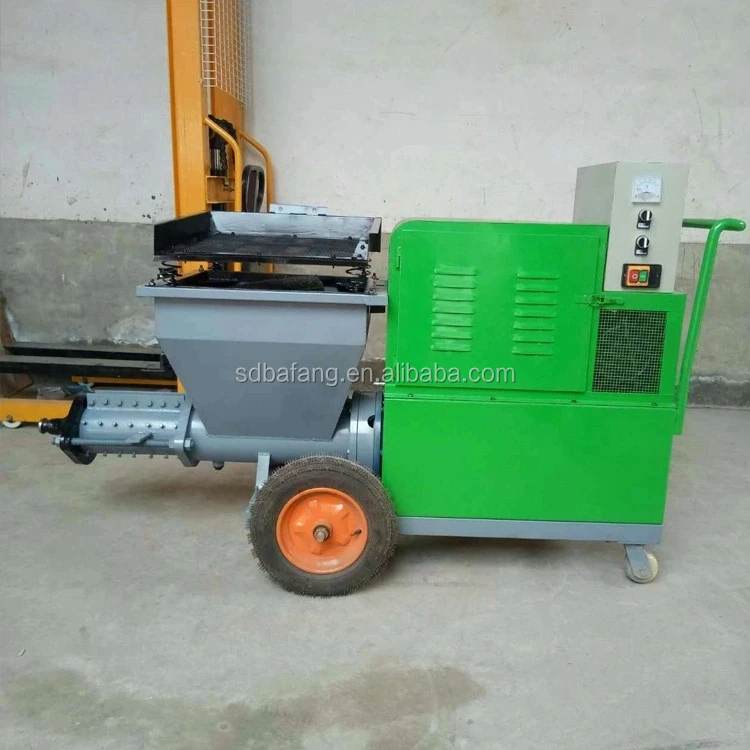

High quality 311 grouting and wall plastering machine

FOB Reference Price:Get Latest Price
$450.00 - $600.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SY-311
Max. Output Capacity:
2m3/h
Lead Time:
Quantity(Sets) 1 - 1 2 - 3 >3
Est. Time(days) 3 6 Negotiable
Report Suspicious Activity
Overview
Quick Details
Power:
380v
Weight:
240 kg
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Online support
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction works
Condition:
New
Application:
Construction
Place of Origin:
Shandong, China
Brand Name:
Bafang
Certification:
ISO/CE
color:
Customizable
Dimensions:
1650* 630*1360mm
Delivery flow:
2m3/h
Supply Ability
Supply Ability:
450 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 2 - 3 >3
Est. Time(days) 3 6 To be negotiated

High quality 311 grouting and wall plastering machine

Product Description



1. Adapt to spraying materials: water-soluble materials such as putty powder, paint, latex paint, real stone paint, cement mortar, dry mortar, thermal insulation mortar, waterproof material, fireproof material, heat insulation material, sound absorbing material.

2. Adjust the flow rate to get a better spray effect.

3. In addition to the switch on the electric control box, it is also equipped with a remote control switch.

4. The connection between the gun and the feed tube can be rotated for easy operation.

5. High construction efficiency and good quality.

6. Small size, easy to carry on site, and low cost and easy maintenance.

7. Easy to use, fast, save materials, labor, and save money. One machine is only equipped with three people, 150 square meters / hour (thickness 2cm).

8. Material ratio (cement) 0.7:3 mortar



Product Parameter:

Model

SY-311

Delivery pressure

3Mpa

Conveying distance

30m

Conveying height

20m

Max aggregate size

<4mm

Water-sand sand ratio

0.7-1:3

Delivery flow

2m3/h

Hopper volume

50L

Supporting air compressor

0.3-0.6m/3

Matching nozzle

32mm

Dimensions

1650* 630*1360mm

Machine weight

300KG

Packing weight

320kg
