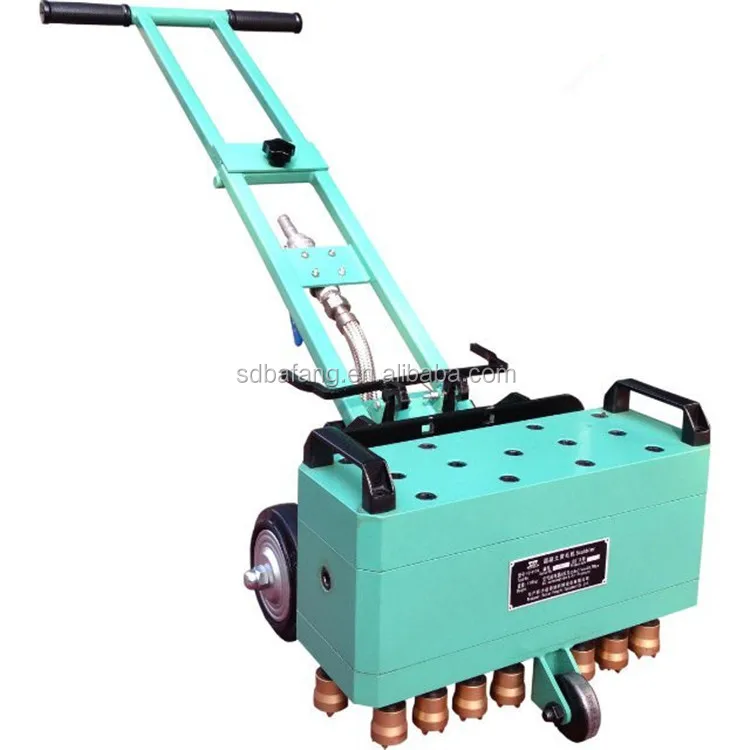

Hand-propelled concrete bush hammer

FOB Reference Price:Get Latest Price
  • 1 - 2 Sets
    $300.00
  • >=3 Sets
    $200.00
Lead Time:
Quantity(Sets) 1 - 1 2 - 3 >3
Est. Time(days) 3 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Bafang
Model Number:
FC-3C
Type:
Abrasive Block
Gouge frequency:
11 * 2200 / min
Color:
Blue
Working width:
400mm
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 2 - 3 >3
Est. Time(days) 3 5 To be negotiated

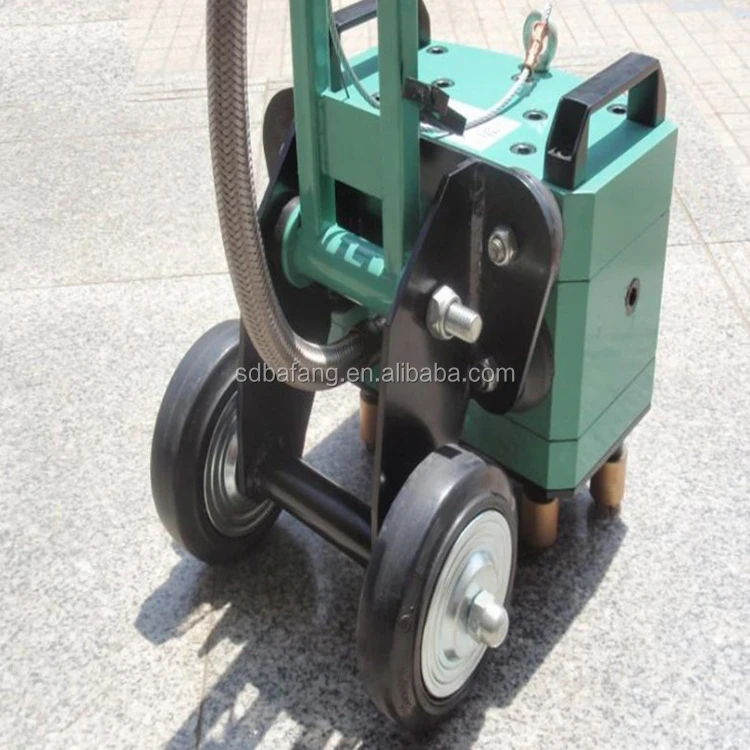

Hand-propelled concrete bush hammer

Product Description

  The bush hammer is mainly used for cutting the concrete surface of expressways, railway bridge decks and box girders, chiseling the concrete surface of building walls, floors and municipal engineering, repairing, refurbishing, secondary reinforcement, metal derusting, stone decoration and other fields.



Characteristic

1, the wool machine usually excavator, special truss, to support the wool machine, can do any Angle to the working surface of the wool. Simple installation, easy operation, little maintenance.

2. The chiseling machine has a small type and a heavy body, and it can do 33,000 chiseling frequency per minute. The hourly chipping area can be up to 30-100 square meters depending on the strength of the concrete, while reducing the damage to the foundation. The 3-point vibration damping system makes the operator more comfortable (4.96m/s 2), and the machine power is operated by 3m3/ 7kg air compressor.

3, wool chiseling machine is used in reservoir, dam leakage, dangerous bridge dangerous bridge reinforcement, power plant, highway, high-speed railway, tunnel and culvert and other types of building reinforcement, various ways of wool chiseling.



Product details





FC-3C

FC-2A

FC-1B

weight

5.5kg

3.5kg

2.2kg

blow count

3*2400Times/min

2*2400Times/min

1*2400Times/min

displacement

0.9 m3/5kg

0.8 m3/5kg

0.6 m3/5kg

Pressure chisel head diameter

 31*3

31*2

31*1

Hisels is the chiseling depth

5-10/h  3-5mm

4-8/h   3-5mm

3.5-5/h  3-5mm
