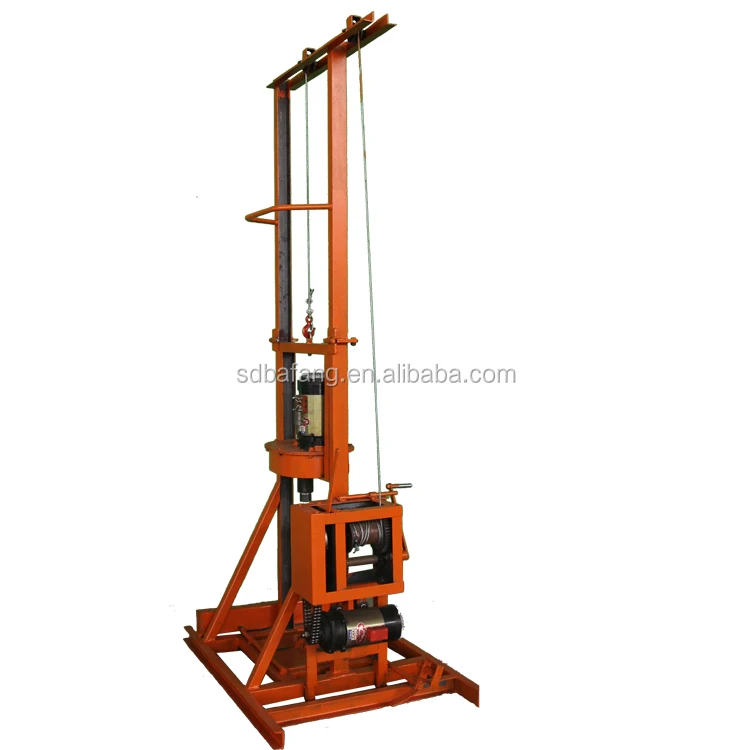

Factory supply BF-200 portable water well drilling rig

FOB Reference Price:Get Latest Price
$1,500.00 - $3,200.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
BF-200
Power(W):
2kw
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Construction works , Energy & Mining
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Electric
Place of Origin:
Shandong, China
Brand Name:
Bafang
Usage:
Water Well
Voltage:
220v
Dimension(L*W*H):
1200*900*1000mm
Certification:
ISO
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
Name:
Drilling Machine
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
qingdao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated

Factory supply BF-200 portable water well drilling rig

 Product Description:

1. The floor space is small and light, and the length is less than 2 meters after dismantling. Under the small tricycle, the quality is less than 40 kg, and one person can move.

2. Removable design, 50mm column steel frame support, safer and stronger.

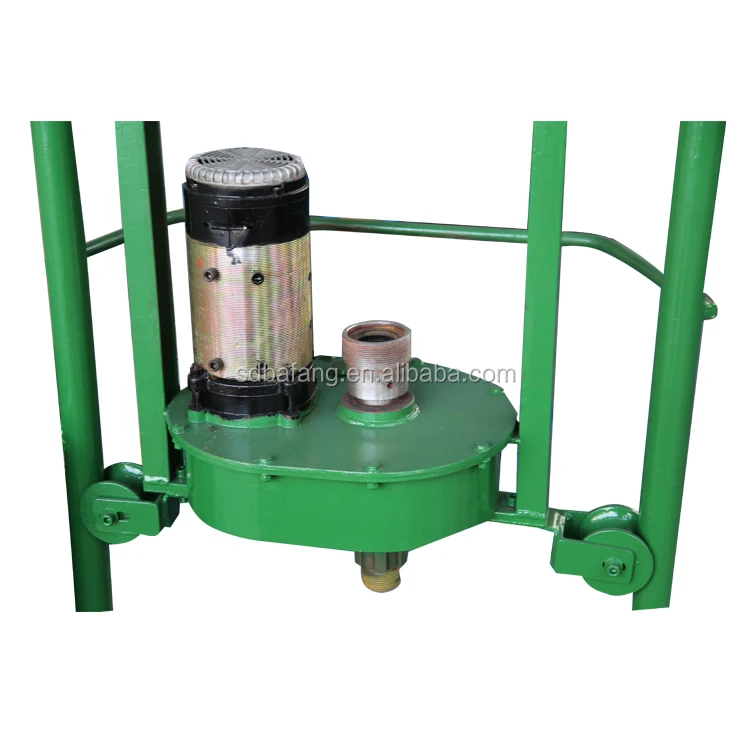

3. Drilling machine head parallel shaft reducer modeling structure design, low noise, no jump teeth, stable and reliable operation, precision processing of water supply activity faucet, center axle hoisting weight design, sling weight bearing, more scientific and safe.

4. The lifting chassis adopts stamping forming, humanized design, more beautiful, can be assembled and disassembled, and convenient for maintenance and replacement.

5. The water supply pipe joints are all connected by live connection, which is more convenient to install. If equipped with a mud pump, it is safe to hit a 200-meter deep well.

Parameter:

parameter

Unit

BF-200

Driving motor power

Kw

2

Increase motor power

Kw

1.1

Base Specification

mm

1200×900×1000

Derrick Height

M

3.5(2+1.5)

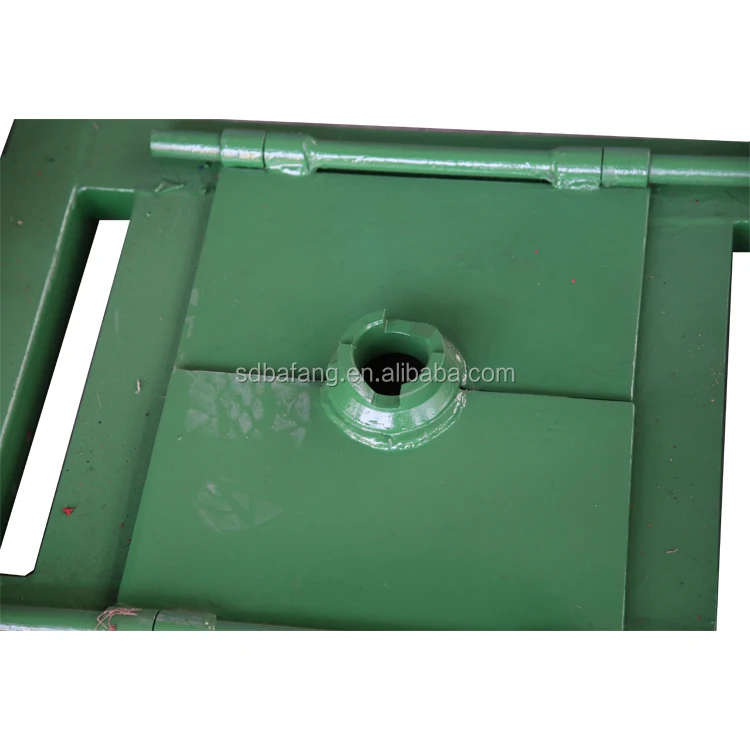

Seat Cover Opening Mode



One pedal opens and closes automatically

Drive shaft diameter

mm

50

Matching station pole diameter

mm

50

Reducer Model



55-240

Supporting pumps



220V voltage, 12M flow and 46M lift

DC Transformer



60V-80A DC Charging Transformer

Connection Mode of Drill Pipe



Item Wire

Random attachments (Note: attachments can be adjusted in time with product update)



2 pipe pliers, 1 special wrench, oil seal, power distribution control box, supporting cable 20 meters, grip, vulnerable parts, 2 drill bits, 2 connecting drill pipe item wires,
