Large output pneumatic drilling rig

  • 1 - 2 Sets
    $3,000.00
  • >=3 Sets
    $2,600.00
Model Number:
ZQJC-150
Power(W):
2.8 KW
Lead Time:
Quantity(Sets) 1 - 1 2 - 3 >3
Est. Time(days) 3 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Construction works , Energy & Mining
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
pneumatic
Place of Origin:
Shandong, China
Brand Name:
Bafang
Usage:
Ore
Voltage:
220/380 v
Dimension(L*W*H):
1250*640*1265 mm
Weight:
130 kg
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Online support
rated speed:
180 r/min
rated torque:
150 N m
Color:
Requirement
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 2 - 3 >3
Est. Time(days) 3 5 To be negotiated

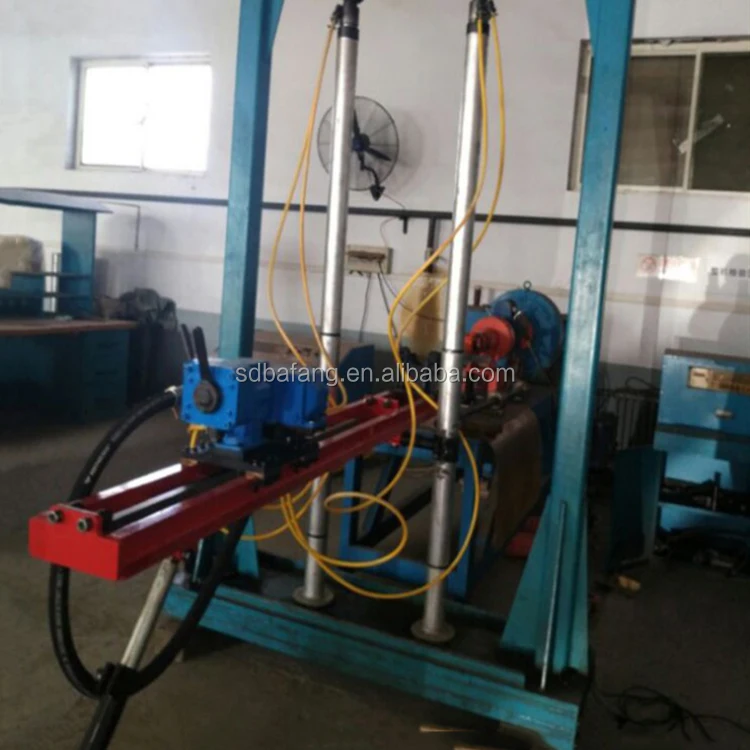

Large output pneumatic drilling rig

Product Description

   The zqjc-150/2.8 pneumatic column rig is the weight of the rig supported by the column and the counter torque generated during work. The drill is portable, it has the characteristics of safety and explosion, large torque, high speed, small mass, small volume, high efficiency, simple structure and convenient maintenance. Therefore, this drilling rig has high working efficiency, good support quality, low labor intensity for workers and low footage cost, so it is one of the necessary equipment for coal mining industry.





 Produce details



Working air pressure

MPA

0.5

Rated torque

N.M

150

Rate speed

r/min

180

Maximum power output

KW

2.8

Maximum load torque

N.M

250

Dynamic stalling torque

N.M

260

Starting torque

N.M

255

Load gas consumption

m3/min

5.5

No-load speed

r/min

450

1/2No-load speed

r/min

225
