Quarry Blasting Small Portable Borehole Mining Electric Hard Rock Drilling Machine

FOB Reference Price:Get Latest Price
$1,200.00 - $1,900.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
KHYD140
Power(W):
5.5kw
Lead Time:
Quantity(Sets) 1 - 22 >22
Est. Time(days) 4 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Construction works , Energy & Mining
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Electric
Place of Origin:
Shandong, China
Brand Name:
BAFANG
Usage:
Coal
Voltage:
380V
Dimension(L*W*H):
1080*500*500mm
Weight:
40-150KG
Certification:
ISO9001
Warranty:
1 year
After-sales Service Provided:
Free spare parts, Online support, Overseas third-party support available
Drilling dia. for rock:
42mm
Drilling dia. for mine:
45-60mm
drilling caliber of rock:
42-80mm
weight:
40kg
drilling caliber of coal mine:
40-120mm
power:
2kw
Drilling depth for mine:
20-60m
Drilling depth for rock:
5m
Supply Ability
Supply Ability:
200 Piece/Pieces per Day hard rock drill rig
Packaging & Delivery
Packaging Details
wooden box
Port
qingdao
Lead Time :
Quantity(Sets) 1 - 22 >22
Est. Time(days) 4 To be negotiated

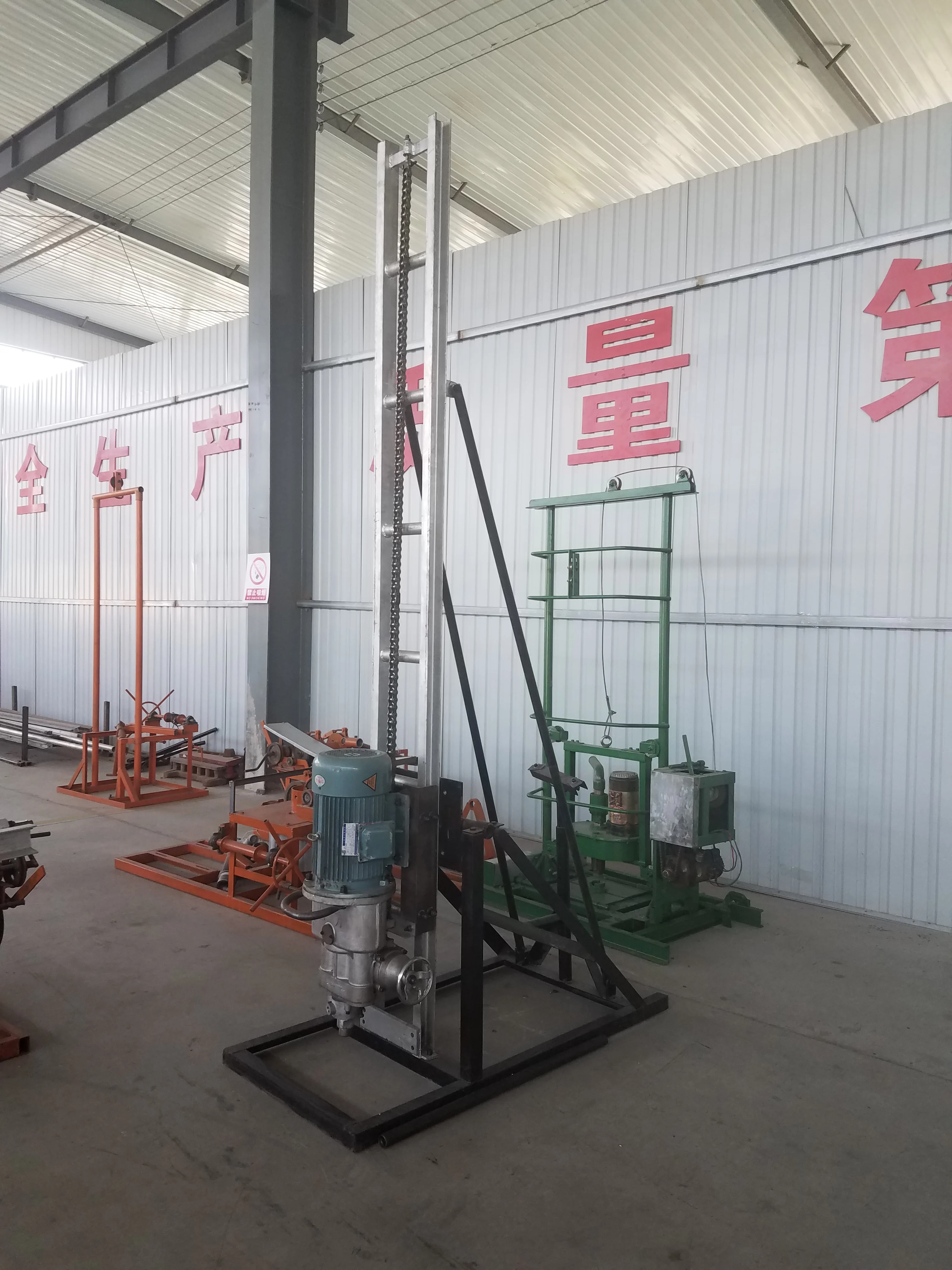

Coal hard rock drill rig with good price









KHYD series mine electric variable-speed drill is suitable for rock drilling rock blasting holes,highway subgrade drilling row of holes urban high days building foundation pit in the soil-nail drill;housing,land-based plant-based reinforcement grouting holes,physical exploration of blast hole and so on.The big rig especially is suitable for digging holes,deep hole. Compared with other types power fairly drilling machines,it has light weight,easy to move and aerial operations.

 Feature

1.Electric rock drill is used for drilling burst mine hole in rock.

2. It is widely used in the mine shaft excavation, road construction, water conservancy construction, metallurgy mining, rock engineering, quarry operation, basic engineering drilling reinforcement construction process.

3.The explosion-proof electric rock drill is used for drilling water injection hole, on coal seam, exploring water holes and discharging gas, also can be used for soft rock tunnel excavation.

4.they can do wet type and dry type work (equipped with twist drill rod). Drills holes horizontally forward or tilt up, only need to control the handwheel, the drill will track forward and backward automatically on the railway.





Parameter



Item

Rock

 diameter

mm

Diameter of

coal seam

mm



Depth of

 rock

m



Depth of

coal seam

m



Speed

r/min

power

kw

weight

kg

KHYD40

42

45-60

5

20-60

2814

2

40

KHYD75

42

45-80

10

30-80

1420

3

75

KHYD140

42-80

80-100

20

30-80

1440

5.5

140

KHYD150

42-80

80-120

25

40-100

1440

7.5

150
