Factory supply cement mortar spraying machine

FOB Reference Price:Get Latest Price
$1,000.00 - $2,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HSP-5
Max. Output Capacity:
5M3/H
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Power:
380V
Weight:
800KG
Dimension(L*W*H):
2000*900*1180mm
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Field maintenance and repair service, Online support
Applicable Industries:
Construction works
Condition:
New
Application:
mortar
Place of Origin:
Shandong, China
Brand Name:
Bafang
Certification:
ISO
Product name:
mortar spraying machine
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
qingdao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated

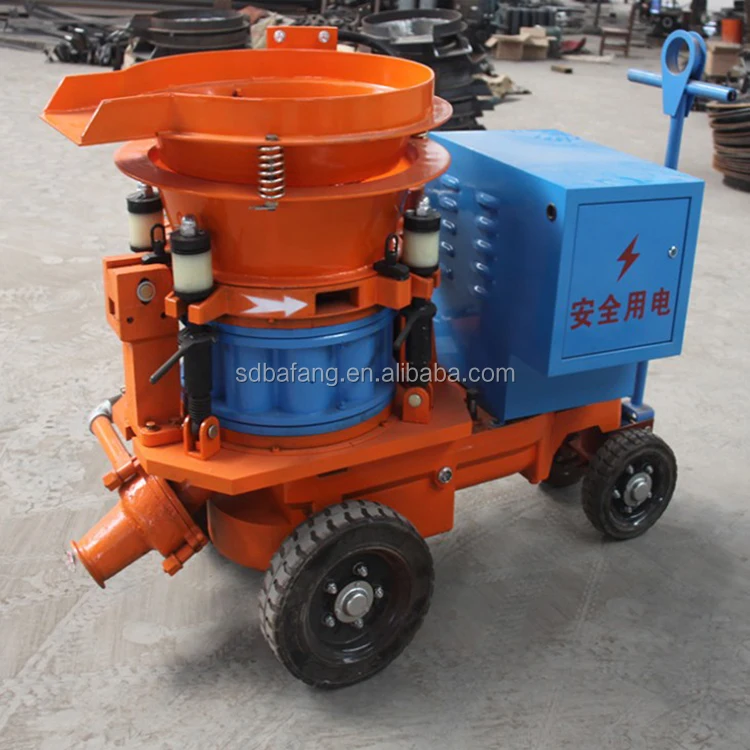

Factory supply cement mortar spraying machine

Product Description:

1.Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.

2.Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.

3.Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.

Parameter:

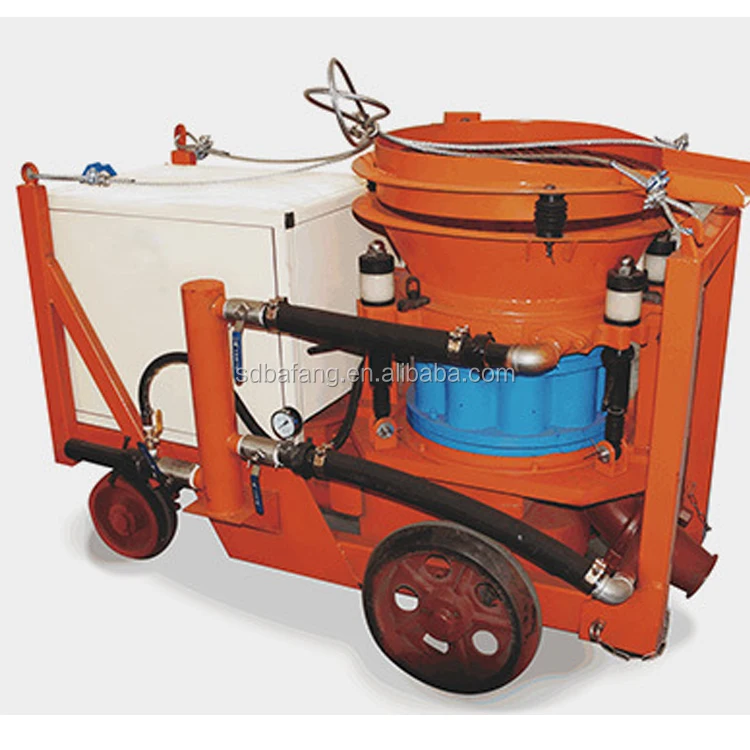

PZ Model (dry-type) shotcrete machine

Model

PZ-3

PZ-5

PZ-7

Capacity (m3/h)

3.5

5

7

Max. Conveying Distance (Horizontal,Vertical m)

200,20

200,20

200,20

Use material ratio(Cement/Sand)

2001-3-5

2001-3-5

2001-3-5

Use material water-cement ratio

0.4

0.4

0.4

Max. Aggregate Diameters (mm)

20

20

20

Feeding pipe inner diameters(mm)

38

51

64

Rotor Diameter(mm)

350

438

480

Working pressure (MPa)

0.4-0.6

0.4-0.6

0.4-0.6

Air consumption (m3/min)

3-4

7-8

8-10

Motor Model

Y112M-6-3KW

Y132-6-5.5KW

Y132-6-7.5KW

Voltage(V) (according to customer's

special requirement)

380,660,etc

380,660,etc

380,660,etc

Overall size (mm)

1040*550*940

1280*700*1280

1500*700*1280

Overall weight (kg)

260

600

700
