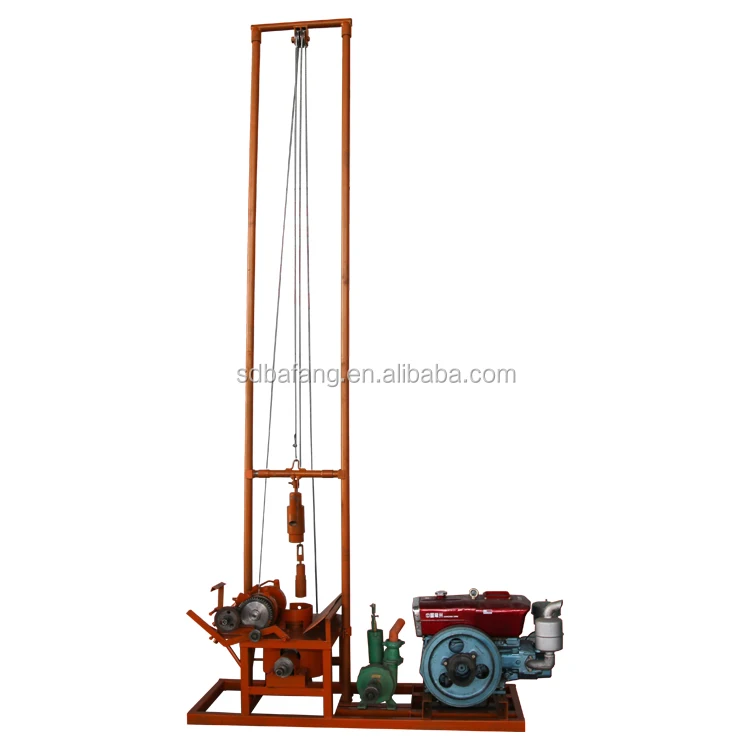

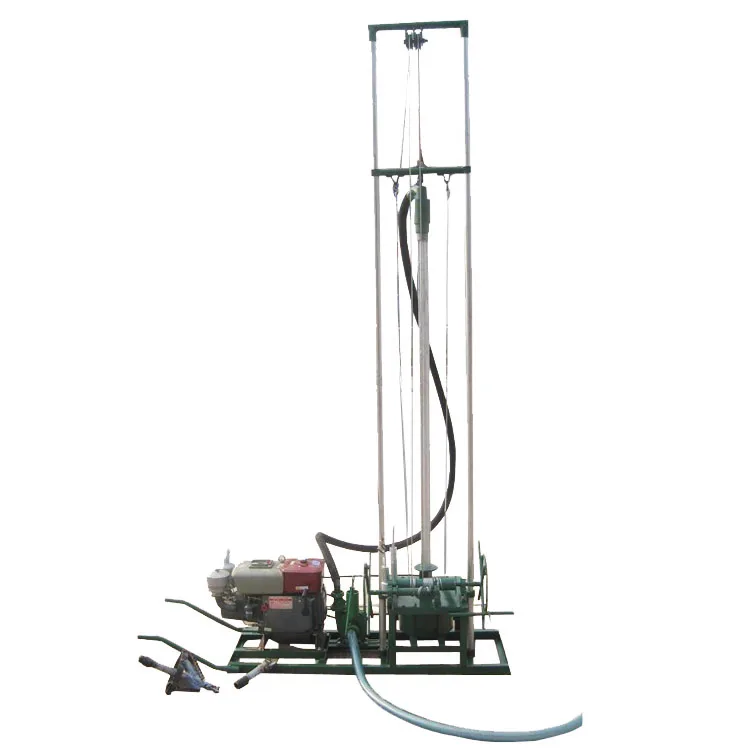

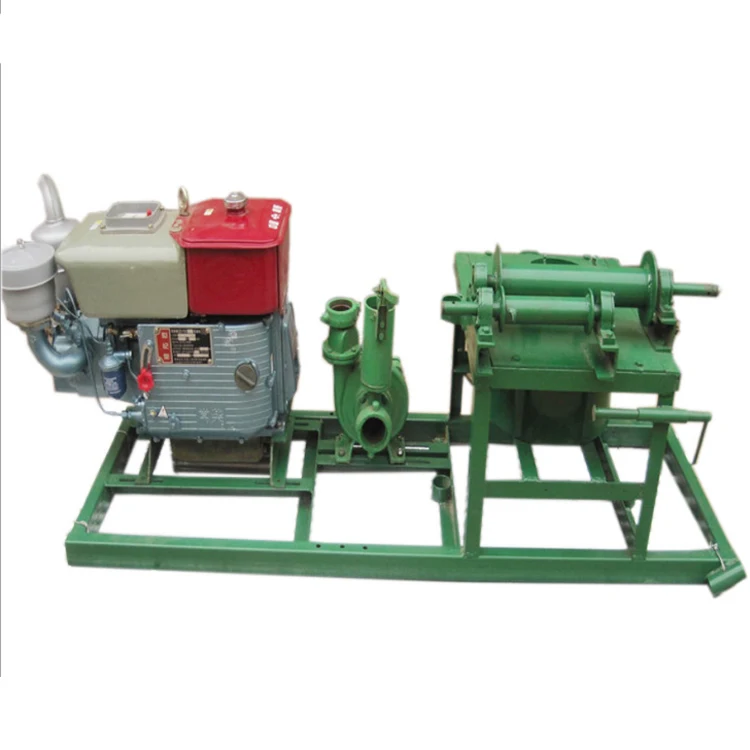

High Quality Water Well Drilling Rig Machine ZT-300 With Diesel Engine

  • 1 - 2 Pieces
    $1,950.00
  • >=3 Pieces
    $1,000.00
Model Number:
ZT300
Power(W):
15HP
Lead Time:
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 4 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Overseas third-party support available
Place of Origin:
Shandong, China
Brand Name:
BAFANG
Usage:
Water Well
Weight:
500kg
Certification:
ISO9001:2008
Type:
Core Drilling Rig
Power Type:
Diesel
Dimension(L*W*H):
2.3*0.9*0.9m
Applicable Industries:
Farms
Drilling depth:
100m
Drilling diameter:
70-300mm
drilling tower height:
3m
speed:
10-20m/hour
covering area:
<1m2
applicance environmrent:
indoors and outdoors
Name:
water well drilling rig
Supply Ability
Supply Ability:
100 Set/Sets per Day
Packaging & Delivery
Packaging Details
wooden box
Port
qingdao
Lead Time :
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 4 To be negotiated
Video Description



11 SPECIFICATION.png



I. Application

ZT300(HF80) portable water well driling rig mainly used for farm irrigation and water well drilling, drilling diameter is 70-300mm, and drilling depth is 60-80m.

II. Features and Advantages

1. Light weight. The main engine is only weighted 0.135tons.

2. Easy to operate. Needing little experience to operate.

3. Durable. The first generation of products used for 13 years, drilled more than 4000 water wells, nearly no repair record except the drilling bits.

4. Carbide tipped drill. Can drill through hard stratum, except for thick rock layer.

5. Reducing labor intensity. Equipped with lifting mechanism.

6. High efficiency. In plain area, the drilling speed could reach 20 meters depth per hour.

7. Economical. It can be called the most economical water well drilling machine.

Equipment accessories:

1. Main drilling rods 2.5m/pc: 1pc

2. Drilling rods 2m/pc: 14pcs

3. Drilling rods 1m/pc: 1pc

4. If the open drilling diameter is less than 100mm, then we supply 2pcs drilling bits

5. Water pump

6. 15Hp diesel motor

The technical parameter:

Drilling depth

60-80m

Drilling diameter

70-300mm

Power Engine

15HP

Overall dimension of the main engine (L*W*H)

1100*600*500mm

Weight (main engine)

135kg

Total Package (L*W*H)

2300*860*860mm

Total weight

650kg
