Factory direct water well driving rig

  • 1 - 2 Sets
    $4,500.00
  • >=3 Sets
    $4,000.00
Drilling Capacity:
400 mm
Lead Time:
Quantity(Sets) 1 - 1 2 - 3 >3
Est. Time(days) 3 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Video technical support, Online support, Free spare parts
Place of Origin:
Shandong, China
Brand Name:
Bafang
Model Number:
sy-100
Voltage:
220 v
Certification:
CA ISO
CNC or Not:
Normal
Dimension(L*W*H):
2500*1150*1600 mm
Drilling Speed:
12 m/ h
Range of Spindle Speed(r.p.m):
60 - 90
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining
Key Selling Points:
Energy saving
Weight (KG):
900
Max. Drilling Dia. (mm):
400
Usage:
General
COLOR:
Customer's Request
Application:
Widely
Power(W):
7.5
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 2 - 3 >3
Est. Time(days) 3 5 To be negotiated

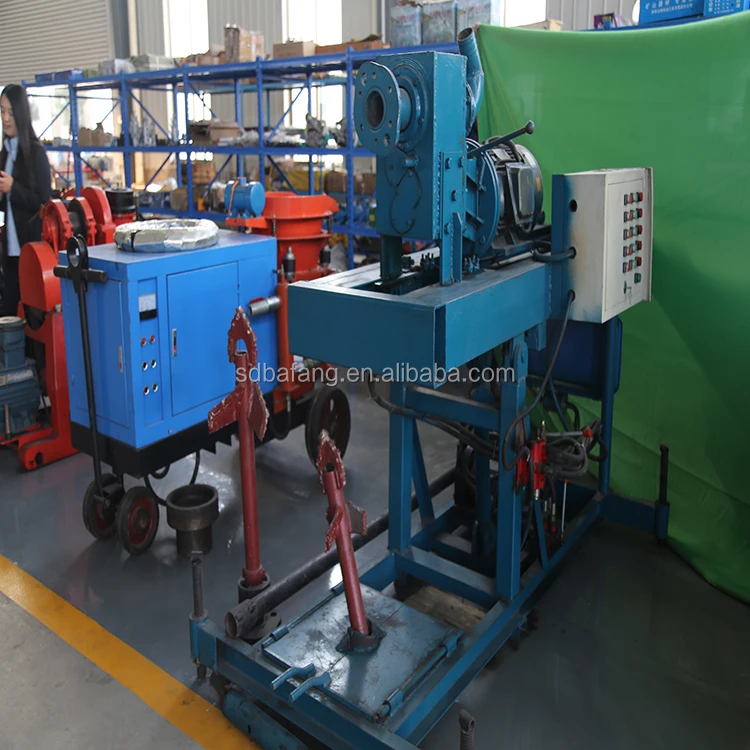

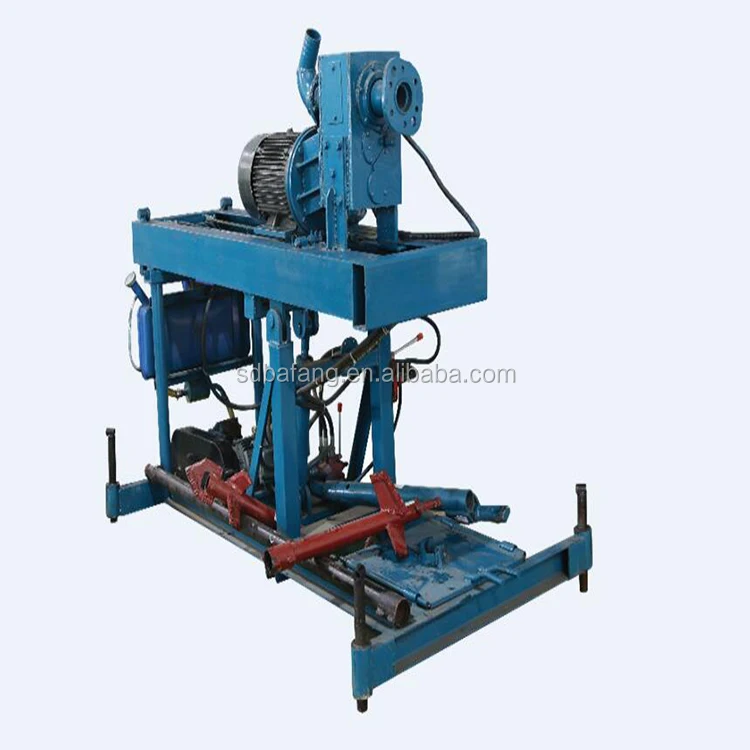

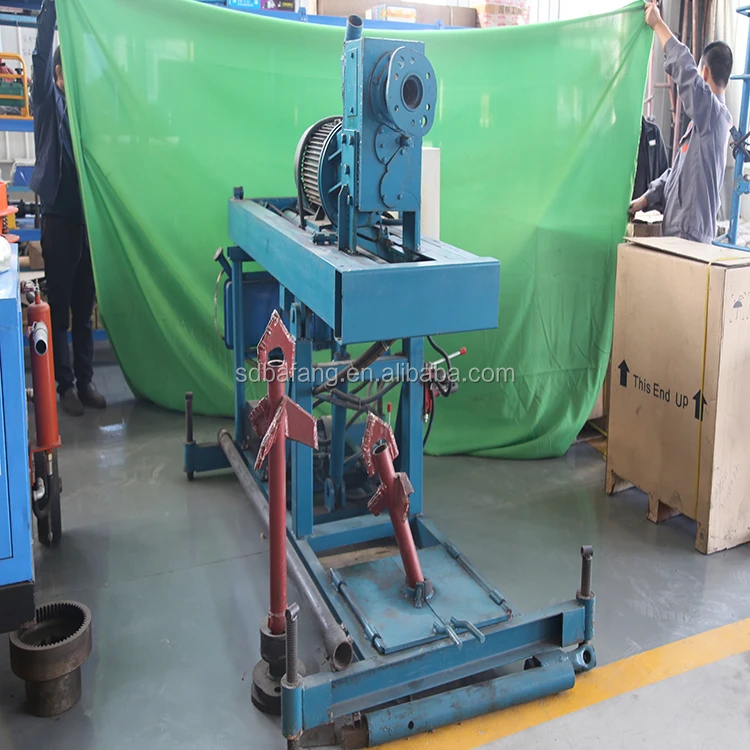

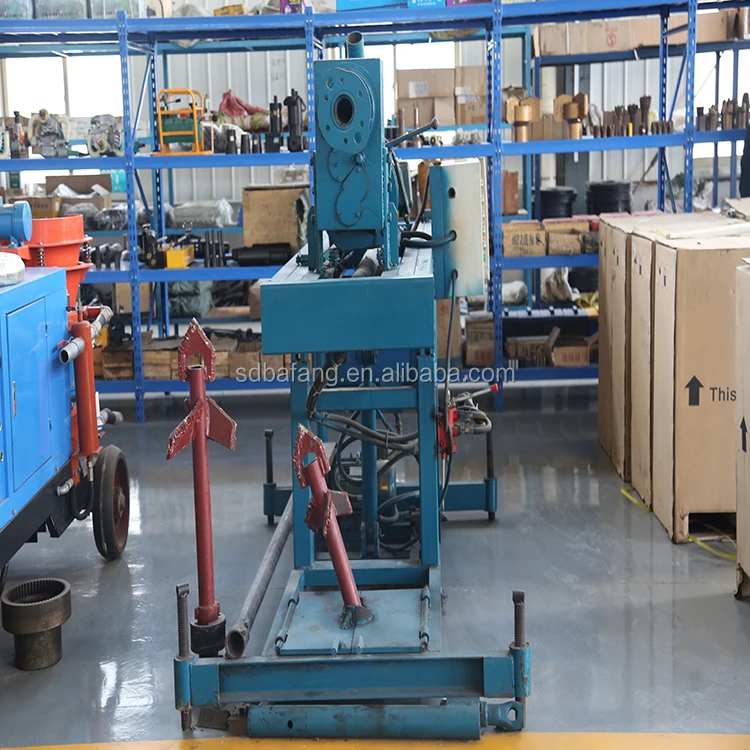

Factory direct water well driving rig

Product Description

   Working principle


After the motor drives the drill bit to break the sand, pump the water up the pipe and enter it with the sand.
Come.
Second, installation and commissioning:
Before work, check whether the gearbox of the machine, the fuel tank is filled with sufficient oil, the circuit is checked for damage, the generator is reliably grounded, and the screws of each part are
Whether the rope buckle is fastened. After ensuring that there is no mistake, the engine, back and forth debugging buttons, repeated operations familiar with the essentials before entering the actual operation.





Technical Parameters



model

sy-100

Matching motor

7.5KW

Drilling diameter

Φ150-700

Drilling pipe length

2 m/pc

size

2500*1150*1600 mm

weight

900 kg
